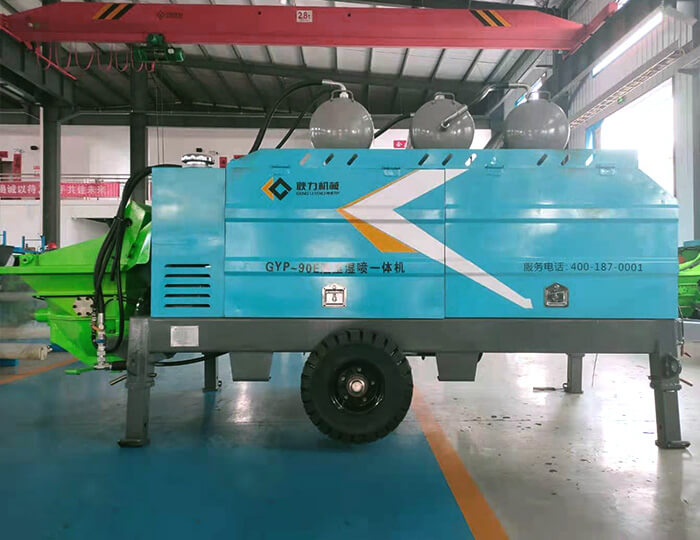

GYP-90E Hydraulic wet shotcrete machine

GYP-90E hydraulic wet shotcrete machine is a concrete pumping equipment with integrated air compression system. It uses the thrust generated by the hydraulic pump to make two oil cylinders reciprocate alternately, and send the dense flow material to the mixed flow of the sprinkler through the pipe. A thin stream is formed at the nozzle by compressed air, and a certain proportion of accelerator is added to the nozzle and sprayed directly onto the spray surface; it is widely used in construction of houses, highways, railways, tunnels, hydropower stations and other projects.

Parameters

Production capacity: 3-9m³/h
System pressure: 22MPa
Working air pressure: 0.6～0.8MPa
Maximum aggregate diameter: 15mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Stable performance

Stable performance, less wearing parts and low maintenance cost.

Integrated air compressor

Patented product, integrated air compressor, more convenient to use.

The delivery volume can be adjusted as needed

The delivery volume can be adjusted as needed.

More convenient operation

Wire control handle device, more convenient operation (optional).

PARAMETERS

Basic performance	Parameters
Production capacity	3-9m³/h
System pressure	22MPa
Outlet pressure of concrete	6MPa
Motor power of Pumping	22KW
Cylinder bore×stroke	125*500mm
Hopper volume	0.15m³
Working air pressure	0.6～0.8MPa
Feeding height	910mm
Maximum aggregate diameter	15mm
Distribution valve of concrete	S tube valve
Lubrication system	automatic
Slump of concrete	120-180mm
Fuel tank volume	150L
Cooling method	Air cooling
Air compressor displacement	6m3/min
Dust around the machine	＜6mg/m³
Rated exhaust pressure	0.8MPa
Maximum exhaust pressure	0.8MPa
Unit input specific power	8.1KW/m3/min
Motor speed of Air compressor	2950r/min
Resilient rate	≤10%
Dimension	3500×1650×1700mm
Machine weight	2350kg
