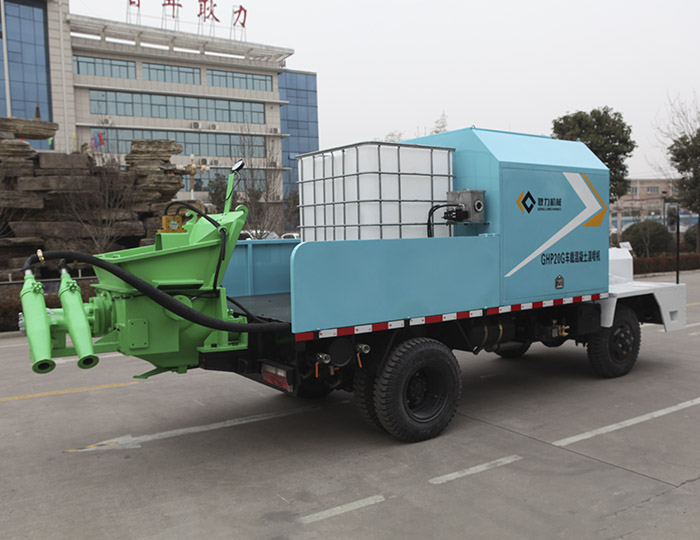

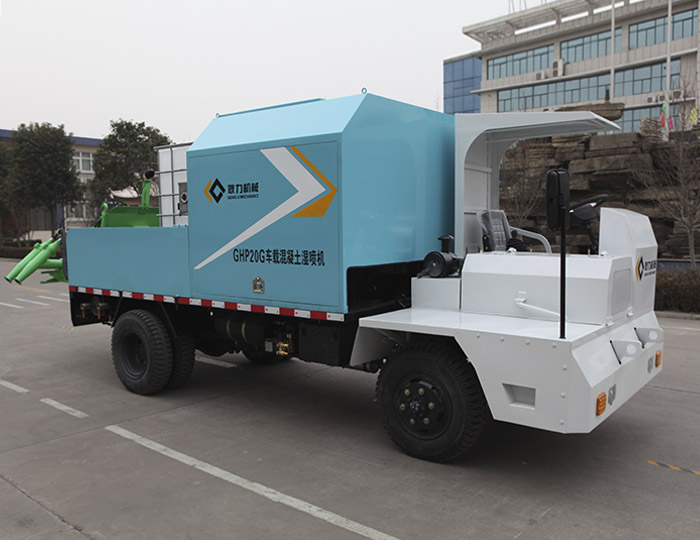

GHP20G Truck-mounted wet shotcrete machine

GHP20G Truck-mounted wet shotcrete machine

With dual pump and dual circuit hydraulic system to make machine more superior and more stable. The chassis with four-wheel drive engineering chassis, well-done in climbing slope and no-load start, reducing the impact of voltage and current on electrical appliances and main motors.

Parameters

Driving way： Hydraulic drive
Production capacity：20m³/h
Fuel tank capacity：200L
Accelerator displacement：0-500L/h

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Four-wheel drive chassis, well-done in climbing slope

Four-wheel drive chassis, higher mobility and stronger climbing ability

External accelerator barrels

External accelerator barrels to save internal space, making installation and maintenance more convenient.

Wireless control, convenient and practical

Remote wireless control, convenient and practical.

Easy to clean and maintain the filter

Easy to clean and maintain the filter, prolong its service life.

Centralized layout，reduce cover length，vehicle with good looking and perfect coordination

Machine with reasonable layout ,compact structure and bright colors，vehicle with good looking and perfect coordination.

System optimized, performance enhanced, more stable

With dual pump hydraulic system to reduce the residence time of slave cylinder piston and weaken the pulse, operating reliably with non-interfering.

Equipped with storage platform, easy to deliver goods

Equipped with storage platform, easy to deliver goods.

Voice reminder, convenient and save worry

Voice remind to add air pressure, mitigating the wind pressure and adding accelerator, bell rings when reduce the accelerator, which makes easier communication between spray-workers and operators.

Reduce steel consumption, optimize oil circuit design, save cost

Platform cover with ladder design to reduce the frame and makes appearance neater; shortening the hood to save its manufacture cost and painting cost.

Various optional configurations, offering more choices to customers

Standard configurations: dual spray nozzles are placed in the truck rear and no frame pump pipes to reduce the cost of whole vehicle Top-glass luxury fittings and reserve the space for frame pump pipes.

PARAMETERS

Machine data	Dimension	L6700W2000H2500mm
Machine data	Total weight	5750kg
Pumping system	Production capacity	20m³/h
	Cylinder bore	140mm
	Pumping stroke	1000mm
	Delivery pipe diameter	Φ125mm
	Outlet pressure of concrete	7.0bar
	Hopper volume	0.3m³
	Feeding height	1450mm
	Distribution valve of concrete	S tube valve
	Lubrication system	Auto
	Concrete slump	120-180mm
	Cooling way	Air cooling
	Dust around the machine	＜6Mg/m³
	Resilience rate	＜10%
	Maximum aggregate diameter	Φ15mm
	Water-cement ratio	0.45~0.6
Traveling chassis	Engine power	46kw
	Wheelbase	2900mm
	Maximum traveling speed	40km/h
	Maximum climbing degree	30%
	Braking way	Air cutting brake
Accelerator system	Accelerator pump model	G30-1
	Driving way	Hydraulic drive
	Accelerator displacement	0~500L
	Maximum pressure of accelerator	20bar
Hydraulic system	Main motor power	45KW
	Fuel tank capacity	200L
	Mater cylinder pressure	17Mpa
	Main pump displacement	100ml/r
