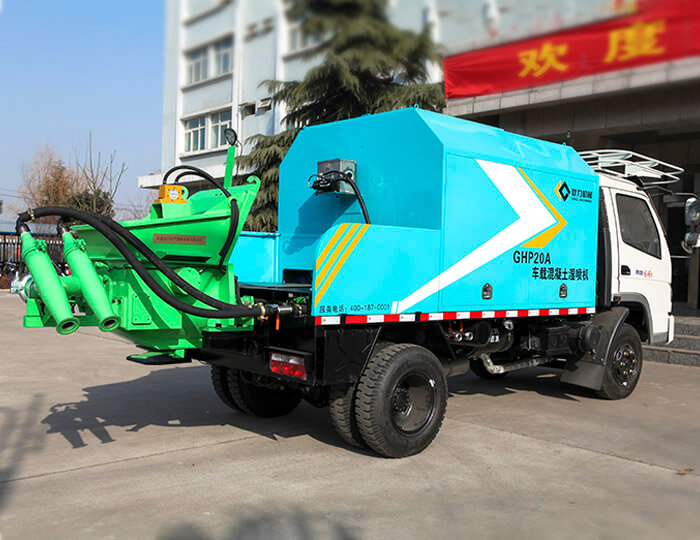

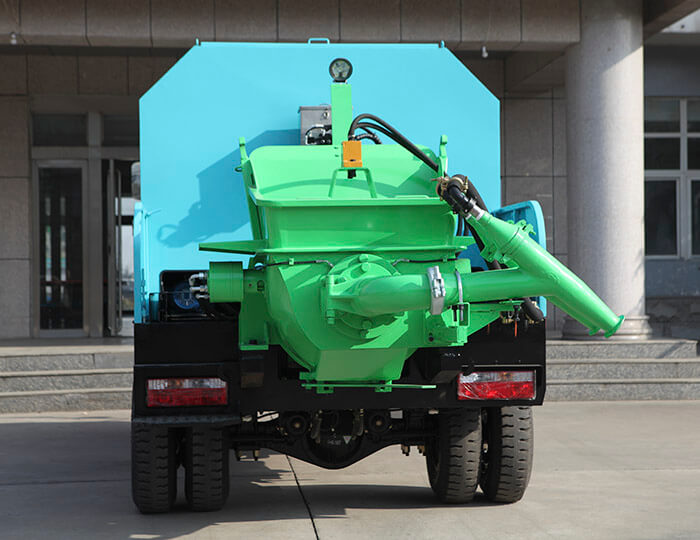

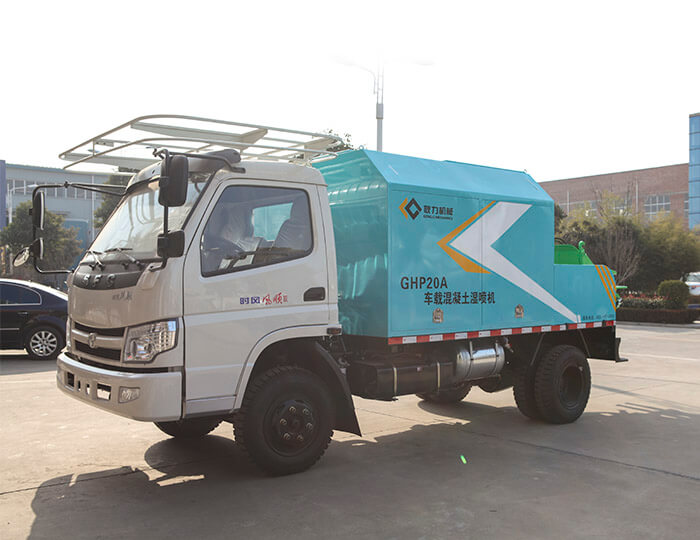

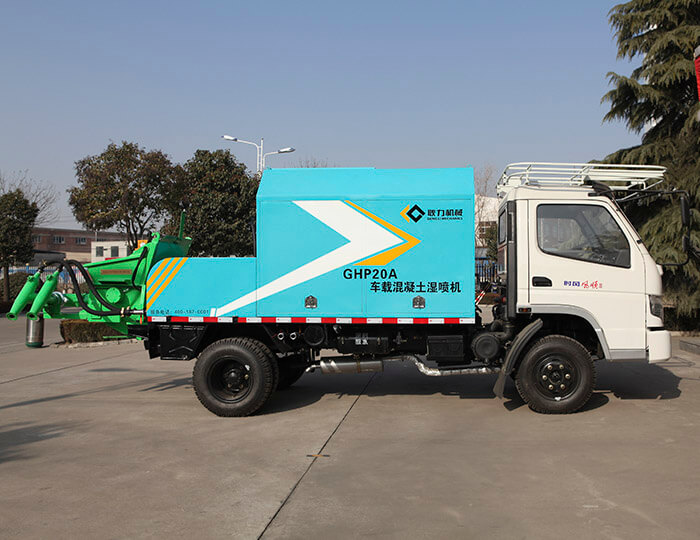

GHP20A Truck-mounted wet shotcrete machine

GHP20A Truck-mounted wet shotcrete machine

GHP20A Truck-mounted wet shotcrete machine adopts double pump and double circuit hydraulic system, which has better performance and more stability. Automobile chassis, flexible movement, stable performance, fast transition.

Parameters

Driving way：Hydraulic drive
Production capacity：20m³/h
Concrete outlet pressure：63bar
Hopper volume：0.3m³

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

With dual pump and dual circuit hydraulic system to make machine more superior and more stable

Using double pumps hydraulic system to reduce the residence time of slave cylinder piston and weaken the pulse, operating reliably with non-interfering.

Excellent equipment structure

Stable performance, rapid transition

Increasing air pressure at the exit of dual spray nozzles for the concrete of poor fluidity

Increasing air pressure at the exit of dual spray nozzles for the concrete of poor fluidity.

Low air consumption，small rebound，high work efficiency

With low air consumption，small rebound, less labor, less material consumption to improve work efficiency and reduce construction cost.

Adding accelerator filter, convenient to maintain

Adding accelerator filter, more confidence in maintenance.

Automobile chassis，moving flexibly

Using automobile chassis to make moving operation more flexible.

Single spray nozzle to add air pressure, improve spraying efficiency greatly

Using single spray nozzle to increase air pressure, and the maximum production capacity can reach 20m³/h.

Discharge port is connected to dual spray nozzles directly

Reduce the delivery distance from concrete to spray-head, making spraying more smooth and stable.

Reduce dust pollution, improve construction environment

Reduce dust pollution effectively, improve construction environment greatly.

Equipped with storage platform, easy to deliver goods

Equipped with storage platform, easy to deliver goods.

PARAMETERS

Machine data	Dimension	L6800W2000H2500mm
Machine data	Total weight	6000kg
Pumping system	Production capacity	20m³/h
	Cylinder bore	140mm
	Pumping stroke	1000mm
	Delivery pipe diameter	Φ125-φ57
	Outlet pressure of concrete	63bar
	Hopper volume	0.3m³
	Feeding height	1450mm
	Distribution valve of concrete	S tube valve
	Lubrication system	Auto
	Concrete slump	120-180mm
	Cooling way	Air cooling
	Dust around the machine	＜6Mg/m³
	Resilience rate	＜10%
	Maximum aggregate diameter	Φ15
	Water-cement ratio	0.45~0.6
Traveling chassis	Engine power	68kw
	Wheelbase	3200mm
	Maximum traveling speed	40km/h
	Maximum climbing degree	30%
	Braking way	Air cutting brake
Accelerator system	Accelerator pump model	G30-1
	Driving way	Hydraulic drive
	Accelerator displacement	0~500L
	Maximum pressure of accelerator	20bar
Hydraulic system	Main motor power	37KW
	Fuel tank capacity	200L
	Mater cylinder pressure	17Mpa
	Main pump displacement	100ml/r
