This working site is slope protection, located in Manila, Philippines. According to the actual conditions o...

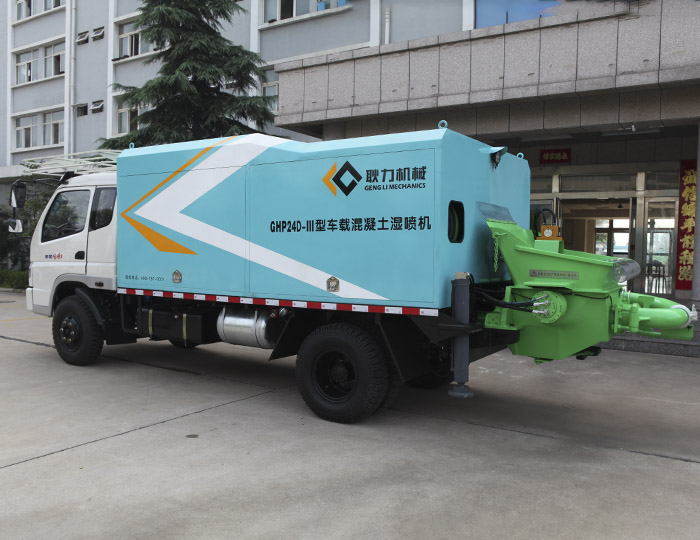

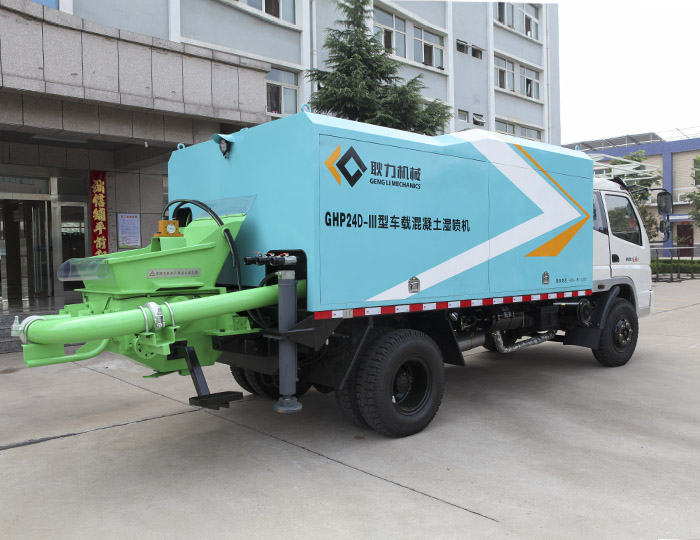

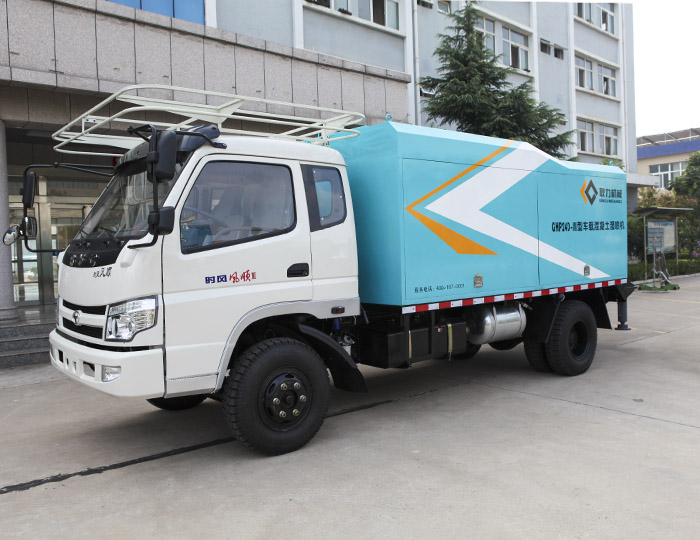

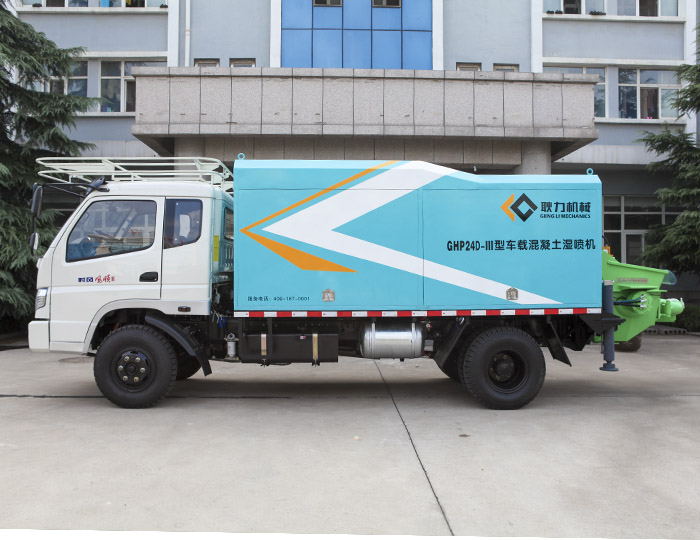

The automotive chassis is adopted, and spare parts are of high universality, which makes maintenance very convenient. It owns features such as low oil consumption, high power, reliable performance, convenient spare parts supply and maintenance.
Theoretical spraying displacement：24m³/h
Cylinder bore：160mm
Pumping stroke：900
Delivery pipe diameter：φ125～φ64mm
Using automobile chassis
Automobile chassis, universal components and easier maintenance. Machine has the characteristics of low fuel consumption, high power, reliable performance, easy accessories supply and convenient maintenance.Stable spraying system, high construction efficiency
Stable spraying, good continuity, little pulse; the multi-nozzle is used at the same time, the construction efficiency is high.Reliable pumping system
Pump system is less energy consumption, low failure rate, less wearing parts, low maintenance cost, high reliability of system and stable throughput.Excellent equipment structure
Excellent equipment structure, high firmness stability and high impact strength.| Machine data | Dimension | L7700*W2400*H2600mm |
| Total weight | 8500kg | |
| Pumping system | Production capacity | 24m³/h |
| Cylinder bore | 160mm | |
| Pumping stroke | 900mm | |
| Delivery pipe diameter | Φ125mm~Φ64mm | |
| Outlet pressure of concrete | 63bar | |
| Hopper volume | 0.3m³ | |
| Maximum aggregate diameter | Φ16mm | |
| Water-cement ratio | 0.45~0.6 | |
| Traveling chassis | Engine power | 68kw |
| Gearbox | 10H46 | |
| Wheelbase | 3800mm | |
| Maximum traveling speed | 80km/h | |
| Maximum climbing degree | 30% | |
| Braking way | Air cutting brake | |
| Accelerator system | Accelerator pump model | G30-1 |
| Driving way | Hydraulic drive | |
| Accelerator displacement | 0~700L | |
| Maximum pressure of accelerator | 20bar | |
| Hydraulic system | Main motor power | 45KW |
| Fuel tank capacity | 400L | |
| Pollution degree of hydraulic oil | 8~9 NAS1638 | |
| Main pump displacement | 95ml/r |
