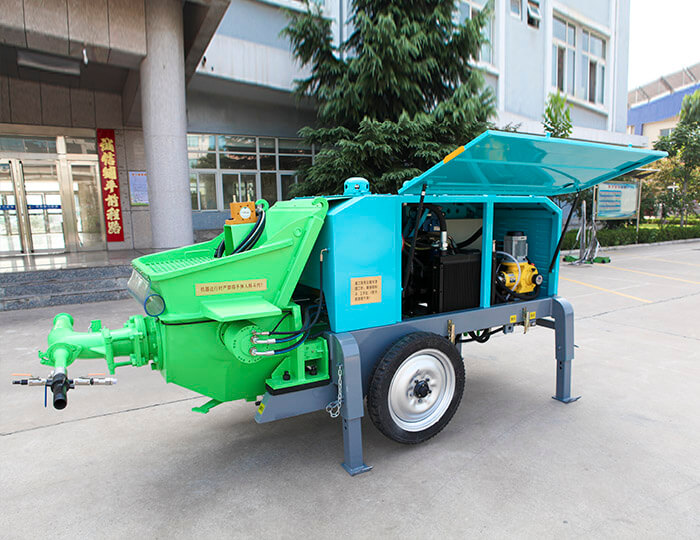

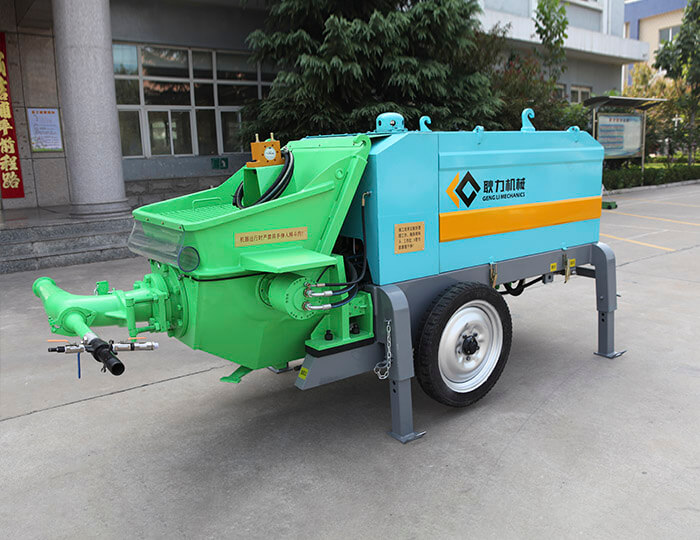

GYP-90D Wet shotcrete machine

GYP-90D wet shotcrete machine is using the thrust of the hydraulic pump to make the two cylinder reciprocating, the dense flow material will be sent to the mixing pipe by conveying pipe, it becomes thin flow by compressed air, then through the pipe to the nozzle. Add a certain proportion of the accelerator to the nozzle then spray directly to the surface.

Parameters

Production capacity ：3-9m³ /h
System pressure：22MPa
Working wind pressure: 0.4-0.6Mpa
Maximum diameter of aggregate: 15mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Stable performance

Stable performance, less wearing parts and low maintenance cost.

Throughput can be adjusted as needed

Throughput can be adjusted as needed (Switching time 16 times/min).

The electrical appliance adopts PLC centralized control

The electrical appliance adopts PLC centralized control, reliable work, long life, easy operation.

Continuous spraying with less pulse

Continuous and adjustable feeding for accelerator

Continuous and adjustable feeding for accelerator.

Wire handle control makes the operation easier

PARAMETERS

Basic performance	Parameters
Production capacity	3-9m³/h
System pressure	22Map
Outlet pressure of concrete	6Mpa
Main motor power	20KW
Cylinder bore×stroke	120*600mm
Hopper volume	0.3m³
Cement ratio	0.45-0.6
Working wind pressure	0.4-0.6Mpa
Feeding height	910mm
Maximum aggregate diameter	15mm
Distribution valve of concrete	S tube valve
Lubrication system	Manual +auto
Slump of concrete	120-180mm
Fuel tank volume	129L
Cooling way of hydraulic oil	Air cooling
Cooling way of hydraulic oil	Air cooling
Dust around the machine	＜6mg/m³
Resilient rate	≤10%
Resilient rate	≤10%
Machine weight	1550kg
Dimension	3000×1360×1360mm
