GHP3515T Engineering Concrete Wet shotcrete Trolley

GHP3515T Engineering Concrete Wet shotcrete Trolley

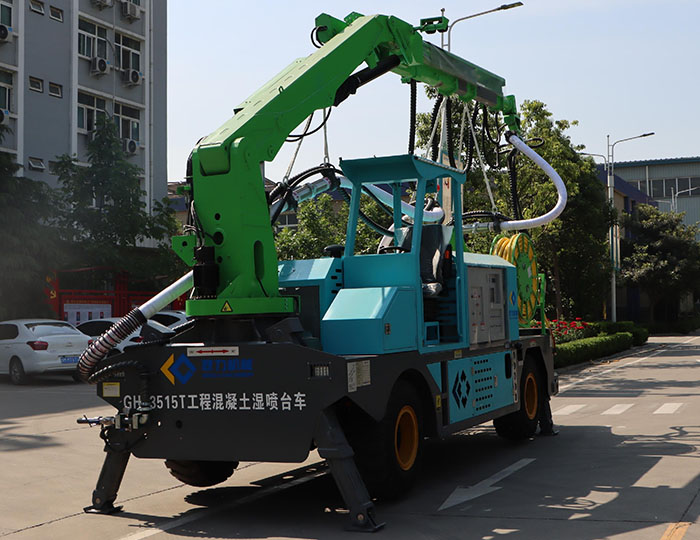

GHP3515T Engineering Concrete Wet Shotcrete Trolley is a cost-effective, high-stability tunnel shotcrete construction equipment. It absorbs the advantages of domestic and foreign brand products in design and manufacture, and its main performance parameters reach and exceed the same type of international products’ level.

Parameters

Maximum theoretical displacement: 35m³/h
Main cylinder bore: ф100mm
Conveying pipe diameter: ф125～ф90mm
Maximum particle size of sprayed aggregate: ф15mm
Machine weight: 15500kg

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

robotic arm

Ten thousand times of fatigue vibration test, longer life, specially designed hydraulic system, more sensitive action

Drive axle

Reinforced wet brake steering drive axle, more stable performance

walking system

Hydraulic transmission, electronically controlled power shift without stopping, more convenient control and more stable performance

remote control

Use customized remote control, durable, 100 meters long distance wireless remote control

Power cable

Standard tensile and wear-resistant 3x35 cable, strong resistance to voltage fluctuations and extended service life

Concrete pump

Adopt large cylinder bore, long stroke pumping system, strong suction capacity while reducing wear and prolonging service life

Concrete delivery pipe

The use of large-diameter pipes reduces the wear of concrete on the pipes, prolongs the service life of the pipes, and has strong anti-blocking ability

Emergency function

Using chassis engine power, all functions can be operated in an emergency when the power grid is cut off

PARAMETERS

project	Basic performance	unit	parameter
Machine parameters	Vehicle size (L×W×H)	mm	7770x2645x3230
Machine parameters	Total Weight	kg	15500
pumping system	Maximum theoretical displacement	m³/h	35
	Master cylinder bore	mm	Medium 100
	Concrete cylinder bore	mm	8180
	Concrete cylinder stroke	mm	1000
	Delivery pipe diameter	mm	125~90
	Maximum particle size	mm	15
	Concrete outlet pressure	bar	83
	Hopper capacity	m³	0.3
walking system	way of walking		wheeled
	Drive axle		Wet Brake Axle
	turn		four-wheel steering
	drive mode		four-wheel drive
	Minimum turning radius	m	5.8
	engine power	kW	97
	Wheelbase × Wheelbase	mm	3900×1920
	Walking speed I/II/III	Km/h	39041
	Maximum grade		36% (20°)
	Minimum ground clearance	mm	346
	Braking distance	m	5 (20km/h)
robotic arm	Max spraying height	m	7.4 depth - 15.8 height
	Maximum spraying width	m	±13.5
	Rotation angle	（°）	270
	Rotation angle of the nozzle	（°）	±180
	Left and right rotation angle of nozzle	（°）	±120
	Nozzle brushing angle	（°）	8 (continuous)
	Nozzle swing angle	（°）	8 (continuous)
	Minimum blasting tunnel	m	4
Hydraulic system	Main motor power	kW	55
	Fuel tank capacity	L	390
	Hydraulic oil pollution degree		NAS1638-9
	Main pump displacement	ml/r	145
cleaning system	Pump model		3WZ-1814HM
	Tank volume	L	500
	drive mode		Hydraulic drive
	use altitude	m	Below 3000
