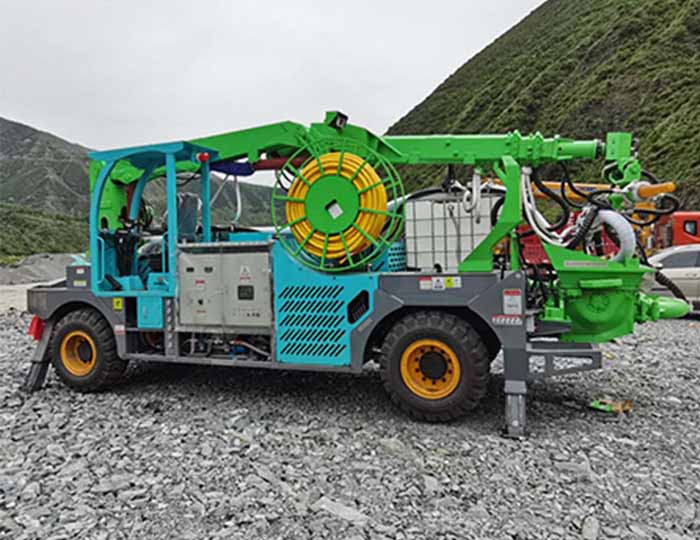

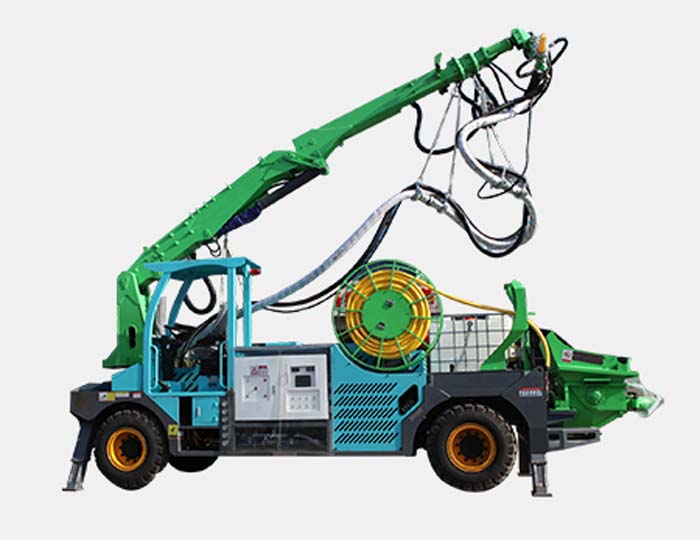

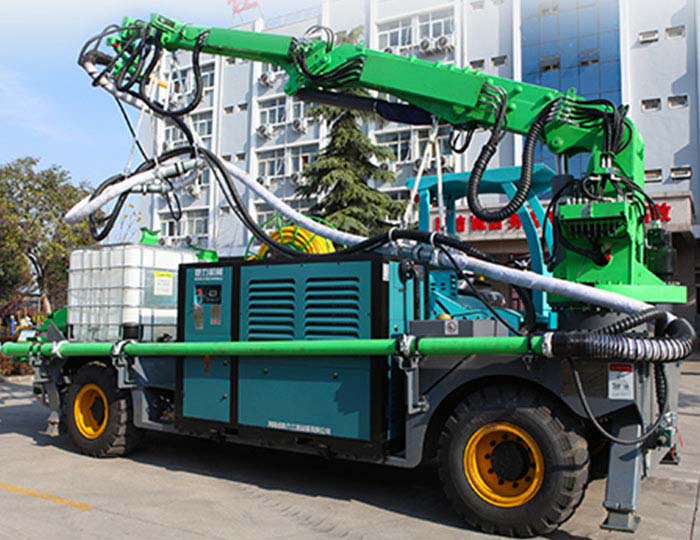

GHP3017E Engineering Truck-mounted Robot Shotcrete Machine

GHP3017E Engineering Truck-mounted Robot Shotcrete Machine

GHP3017E is a newly-developed tunnel shotcrete construction equipment that integrates electromechanical and hydraulic systems; it combines the advantages of well-known domestic and foreign brand products in design and manufacturing. The vehicle adopts a modular design to meet the construction needs of different projects.

Parameters

Theoretical spraying displacement: 30m3/h
Maximum aggregate size:15mm
Maximum spraying height: Depth 7.4m～Height 15.8m
Maximum spraying width:±13.5m

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Modular design

According to the different construction needs of customers, there are many optional configurations to meet the needs of different working conditions.

Electronic control system

Adopting a special controller for construction machinery, which is more resistant to dust and water; the failure rate is extremely low, and it can adapt to harsh environments.

Concrete pump

Adopting large-bore, long-stroke pumping system which has strong suction capacity, and can pump 30 cubic meters of concrete per hour, while reducing wear and extending service life.

Power cable

The standard is equipped with tensile and wear-resistant 3×50² cable, which has strong resistance to voltage fluctuation and prolongs service life.

Travelling system

It adopts original Dana steering drive axle, hydrostatic transmission, adjustable high and low speed, automatic driving experience, and more convenient handling.

Concrete pump pipe

The conveying pipe adopts large-diameter pipes, which reduces the wear of the concrete on the pipe, prolongs the service life of the pipe, and has strong anti-blocking ability.

Accelerator system

Using signal pulse feedback, using the original Italian imported proportional flow valve to accurately control the flow in real time.

Emergency system

When the power grid is cut off, the emergency system can be started, and the chassis engine is used as the power to perform all functions of emergency operation.

PARAMETERS

Machine data	Dimension	L7890W2680H3200mm
Machine data	Total weight	17000kg
Pumping system	Theoretical spraying displacement	30m³/h
	Cylinder bore	Φ180mm
	Cylinder stroke	1000mm
	Delivery pipe diameter	Φ125~φ90
	Maximum aggregate diameter	Φ15
	Hopper volume	0.3m³
	Applicable mixture water-cement ratio	0.45-0.6
	Outlet pressure of concrete	80bar
Walking system	Steering drive axle	Dana
	Gearbox	Dana
	Wheelbase	4450mm
	Engine power	103kw
	Maximum traveling speed	20km/h
	Maximum climbing degree	36%
	Minimum ground clearance	380mm
	Barking distance	5m（20km/h）
Mechanical arm	Robotic arm model	GL12-7
	Maximum telescopic length	4400mm
	Pitch angle	-110°~70°
	Maximum spraying height	7.4m depth~15.8m height
	Maximum spraying width	±13.5m
	Swing angle of arm	270°
	Rotation angle around the nozzle	±180°
	Left-right rotation angle of nozzle	±120°
	Swing angle of nozzle	8°
Accelerator system	Accelerator pump model	SN-12
	Driving way	Hydraulic
	Accelerator displacement	0~1000L
	Maximum outlet pressure	20bar
Hydraulic system	Main motor power	55KW
	Fuel tank capacity	450L
	Hydraulic oil accuracy grade	10μm
	Main pump displacement	145ml/r
Washing system	Pump model	3WZ-1814HM
Washing system	Water tank volume	200L
