GHP30G-IV Truck-mounted Robot Shotcrete Machine

GHP30G-IV Truck-mounted Robot Shotcrete Machine

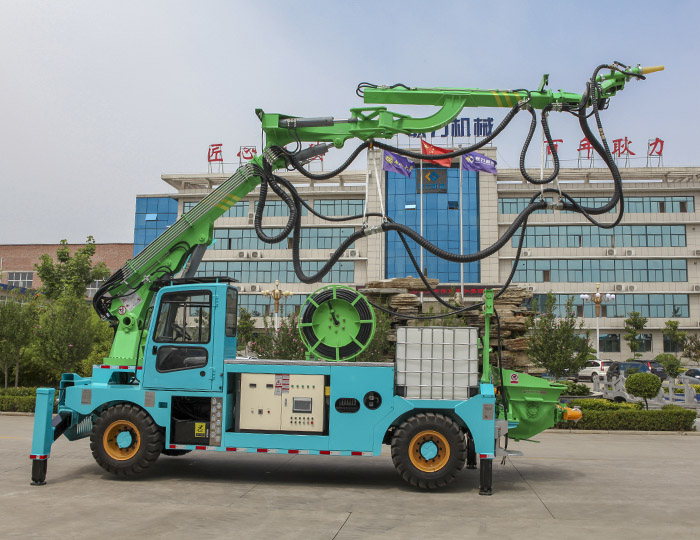

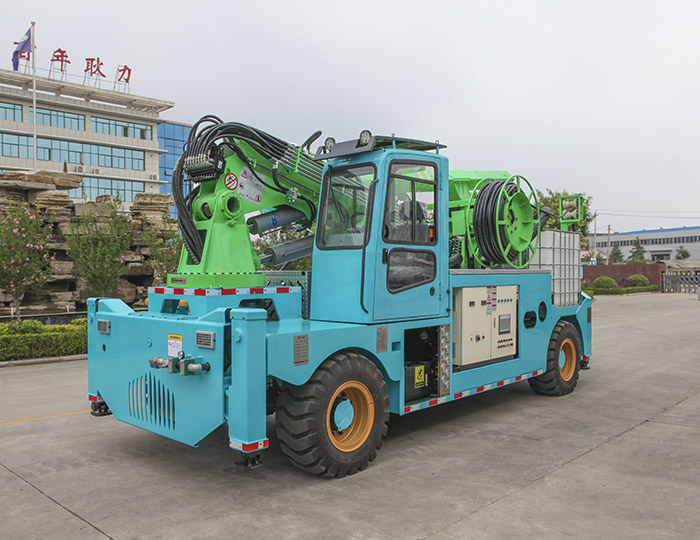

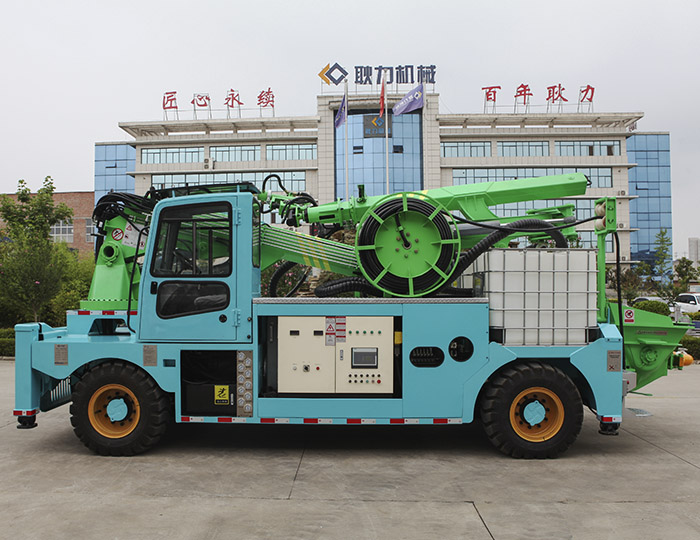

GHP30G-IV concrete wet shotcrete is a large concrete wet spraying equipment which is integrated with electro-hydraulic system. GHP30G-IV's mechanical arm, pump delivery system, hydraulic system, electrical system and other key components adopt international well-known brand products.

Parameters

Theoretical spraying displacement:：30m³ /h
Cylinder bore：φ180mm
Cylinder stroke：1000mm
Delivery pipe diameter：φ125-φ90mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Front telescopic outriggers ensure better machine stability

Front telescopic outriggers ensure better machine stability, safer and easier construction

Reliable and efficient imported axle

Imported axle and hydraulic driving system can achieve four-wheel steering and crab walking, efficient and stable.

103kw WP third phase engine

103kw WP third phase engine meets large grade and high attitude construction requirements.

Comfortable driving

Sealed cab and humanization design make operator feel more comfortable

Intelligent electrical system

Electrical system with intelligent and redundant design to avoid wrong operation, safe and reliable

Engineering chassis with better performance

Engineering chassis features compact structure, low height, good passability, easy transportation and convenient maintenance.

Optional imported accessories to reduce the probabilities of anti-blocking

Optional 75kw imported motor and optimized pumping hydraulic system and piping system to reduce the probabilities of anti-plugging.

Two optional 1000L accelerator tanks improve the efficiency

Two optional 1000L accelerator tanks reduce auxiliary time and improve construction efficiency.

Optional accessories

Folding boom and telescopic boom are optional for different construction requirements

Automation

Equipped with accelerator suction pump to achieve automatic addition of accelerator

Optional accessories to make construction easier

Optional scribe and screw air compressors for easier construction.

PARAMETERS

Machine data	Dimension	L8050W2400H3170mm
Machine data	Total weight	16500kg
Pumping system	Theoretical spraying displacement	30m³/h
	Cylinder bore	Φ180mm
	Cylinder stroke	1000mm
	Delivery pipe diameter	Φ125~Φ90mm
	Maximum aggregate diameter	Φ15mm
	Cement ratio	0.45~0.6
	Concrete slump	120mm~180mm
	Hopper volume	0.3m³
	Outlet pressure of concrete	83bar
Traveling system	Walking mode	Wheeled walking
	Steering mode	Four-wheel steering
	Driving mode	Four-wheel drive
	Minimum turning radius	6.3m
	Engine power	103kw
	Wheelbase×wheel tread	4450×2030mm
	Maximum traveling speed	20km/h
	Maximum climbing degree	36%
	Minimum ground clearance	380mm
	Barking distance	5m（20km/h）

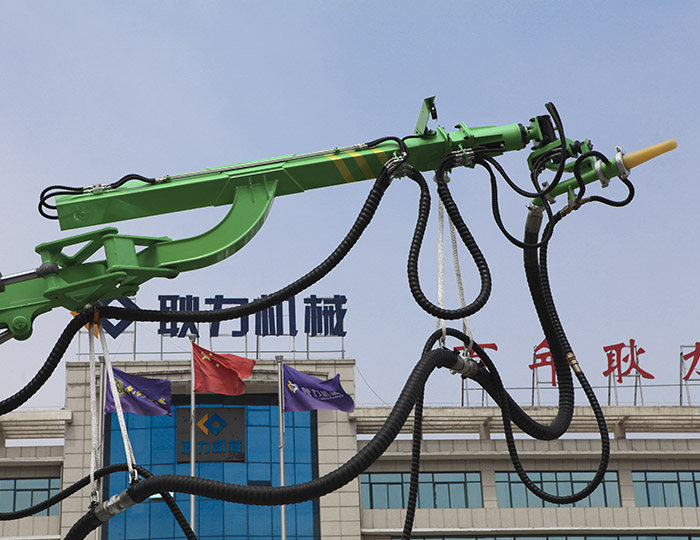

Mechanical arm	Maximum spraying height	Depth 9m~Height 17.5m
	Maximum spraying width	±15.5m
	Swing angle of small arm	+60°~ -180°
	Swing angle of arm	270°
	Rotation angle around the nozzle	±180°
	Left-right rotation angle of nozzle	±120°
	Swing angle of nozzle	8°
Accelerator system	Accelerator pump model	ED12
	Driving way	Hydraulic drive
	Accelerator displacement	0~1000L/h
	Maximum outlet pressure	20bar
	Accelerator volume	2×1000L
Hydraulic system	Main motor power	55KW
	Fuel tank capacity	450L
	Pollution degree of hydraulic oil	NAS1638-9
	Main pump displacement	145ml/r
Washing system	Pump model	3WZ-1814HM
	Water tank volume	120L
	Driving way	Hydraulic drive
