GHP4025 Crawler type robotic shotcrete machine

GHP4025 Crawler type robotic shotcrete machine

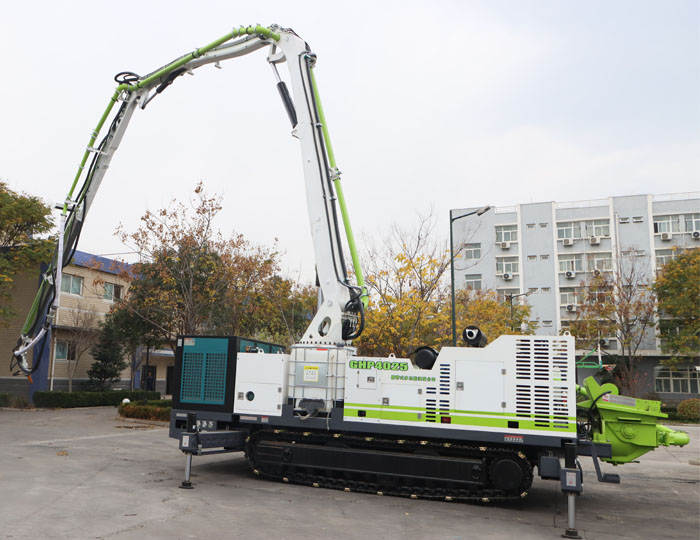

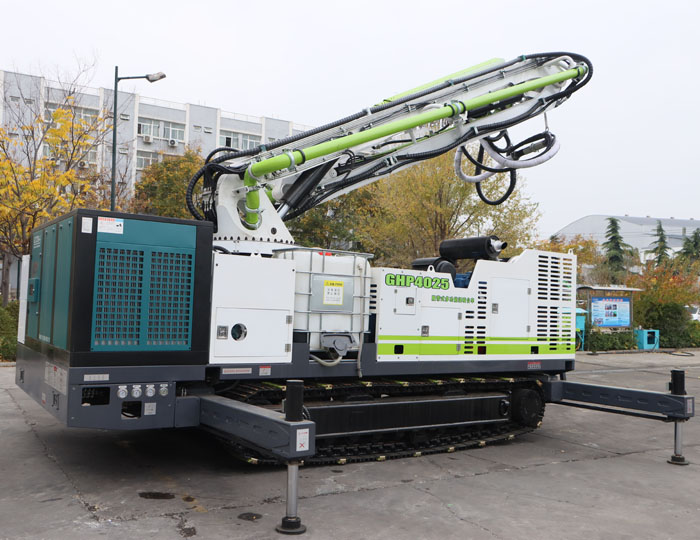

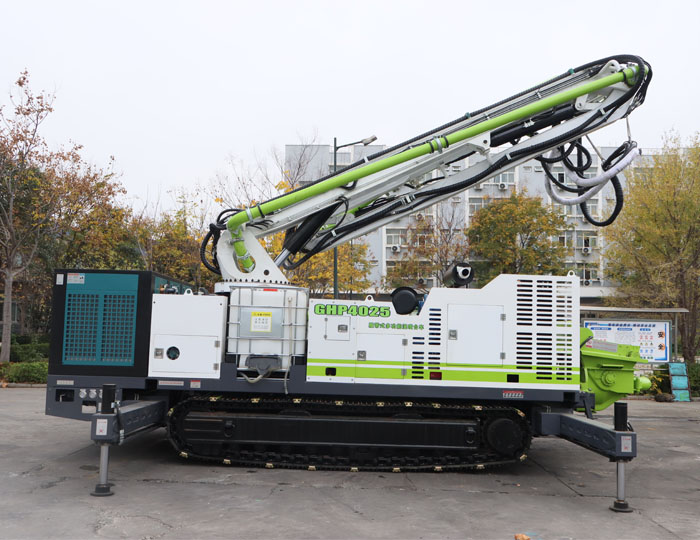

GHP4025 Crawler type robotic shotcrete machine is a newly recommendation for concrete spraying, pumpcrete and seeding spraying. The boom with a maximum reach of 25m, and it is ideal for channel slope, foundation support, seeding spraying and other geotechnical construction; It is equipped with crawler chassis, and mounted with 300kw diesel engine set and 90kw air compressor.

Parameters

Dimensions(L×W×H): 9180×2876×3280mm
Maximum theoretical displacement: 40³/h
Drive cylinder bore: ф100mm
Maximum aggregate size: ф15

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Folding Robotic Arm

Boom with folding & telescopic structure, save space greatly.

High spray height

Maximum spraying height reaches 25m, meet the requirements of various construction.

Comes with diesel generator and air compressor

Mounted with 300kw diesel generator and 90kw air compressor, no need extra power supply and air supply, greatly solve the problems of limitations of equipment below the attitude of 2000m.

Used for pumpcrete and seeding spraying

Ideal for concrete spraying, and could be used for pumpcrete as well as seeding spraying.

Crawler chassis

Crawler chassis, good trafficability.

System maturity

Mature pumping & traveling system.

PARAMETERS

Item	Performance	Unit	Parameter
Overall	Dimension (L×W×H)	mm	9180×2876×3280
Overall	Total weight	kg	27000
Concrete pump	Maximum concrete output	m3/h	40
	Drive cylinder bore	mm	ф100
	Concrete cylinder bore	mm	ф180
	Concrete cylinder stroke	mm	1000
	Delivery pipe	mm	ф125～ф90
	Maximum aggregate size	mm	ф15
	Concrete outlet pressure	bar	83
	Hopper volume	m3	0.3
Diesel generator set	Rated power	kW	300
Chassis	Traveling way		Crawler type
	L×W×Track shoe	mm	4520×2800×400
	Traveling speed	km/h	1
	Maximum climbing degree		36%（20°）
	Minimum ground clearance	mm	248
	Maximum spraying height	m	Depth 13.5～Height 25.5
Boom	Maximum spraying width	m	±22.5
	Boom rotation angle	（°）	310
	Rotation angle-nozzle	（°）	±180
	Left-right rotation angle-nozzle	（°）	±120
	Nutation angle	（°）	8（continuous）
Additive pump	Pump model		YD25R-CL1.5BP
	Flow rate	L/h	1000
	Maximum outlet pressure	bar	12
	Additive tank volume	L	1000
Hydraulic system	Main motor power	kW	75
	Oil tank volume	L	500
	Degree of hydraulic oil pollution		NAS1638-9
	Oil pump displacement	ml/r	145
Washing system	Water pump model		3WZ-1814HM
	Water tank volume	L	200
	Driving way		Hydraulic
Air compressor	Motor power	kW	90
	Air volume	m3/min	16
	Air pressure	MPa	0.8
