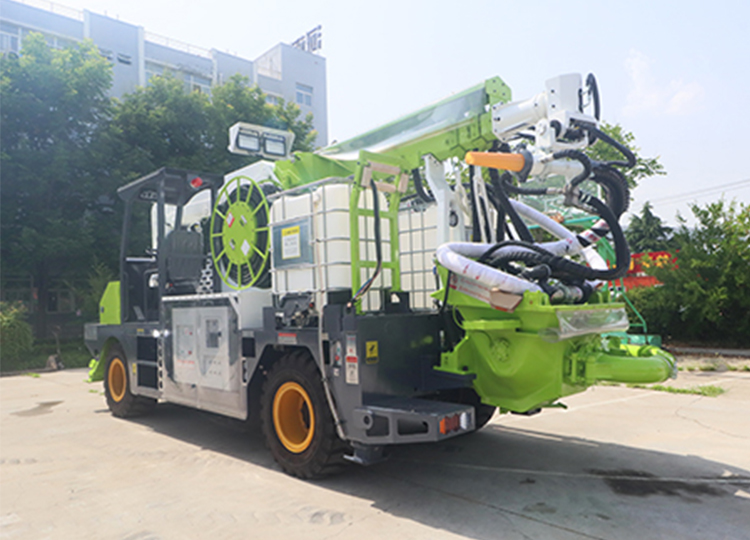

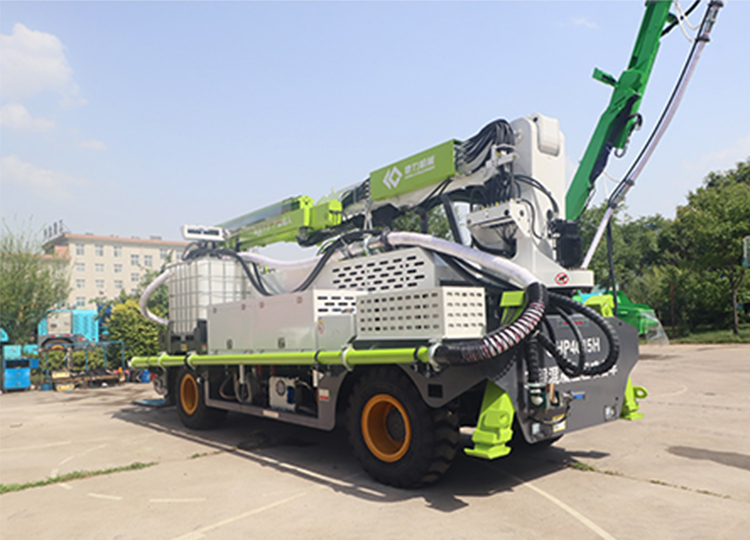

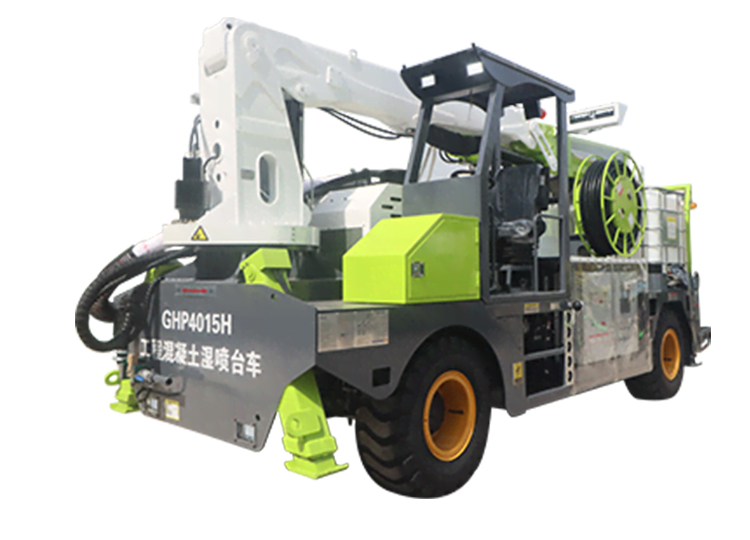

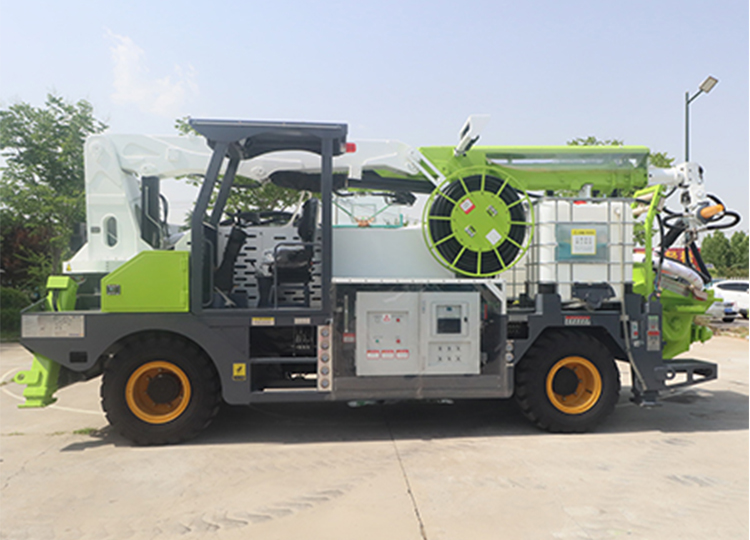

GHP4015H Engineering Concrete Wet Spraying Trolley

GHP4015H Engineering Concrete Wet Spraying Trolley

GHP4015H engineering concrete wet spraying trolley is a new high cost-effective and high stability tunnel spraying and anchoring construction equipment launched by our company. It has absorbed many years of wet spraying machinery design experience in design and manufacturing, combined the advantages of domestic and foreign brand products.

Parameters

Maximum theoretical spraying capacity: 40m³/h
Delivery pipe: ф125～ф90 mm
Max.aggregate size: ф15 mm
Concrete outlet pressure: 83 bar

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Robot arm

After tens of thousands of fatigue strength tests, long service life, stable and reliable performance, wide operation ranges, hydraulic controlled, sensitive operation, more convenient to maintain.

Driving axle

It adopts reinforced brake steering drive axle, four-wheel drive, front-wheel steering, strong adaptability, can travel on complex roads, and has stable and reliable performance.

Electronic control system

Adopting a special controller for construction machinery, more resistant to dust and water; Low failure rate, strong adaptability to the harsh environments.

Concrete pump

Adopting large pumping cylinders, which has strong suction capacity, and the pumping capacity reaches 40m³/h, reducing wear and extending service life greatly.

PARAMETERS

Item	Basic Performance	Unit	Parameters
Machine data	Dimension(L×W×H)	mm	7770×2645×3230
Machine data	Total weight	kg	14500
Concrete pump	Max.concrete output	m3/h	40
	Drive cylinder	mm	ф100
	Concrete cylinder bore	mm	ф180
	Concrete cylinder stroke	mm	1000
	Delivery pipe	mm	ф125～ф90
	Max.aggregate size	mm	ф15
	Hopper volume	m3	0.3
	Concrete outlet pressure	bar	83
Chassis	Traveling way		Wheel type
	Driving axle		Wet brake axle
	Steering		Front-wheel steering
	Driving way		Four-wheel driving
	Min.turning radius	m	10
	Engine power	kw	97/2400rpm
	Wheelbase×Wheel tread	mm	4000×1940
	Traveling speedⅠ/Ⅱ/Ⅲ/IV	km/h	5/10/17.5/20
	Max.climbing degree		36%（20°）
	Min.ground clearance	mm	300
Boom	Max.spraying height	m	Depth 7.4～Height 15.8
	Max.spraying width	m	±13.5
	Boom rotation angle	（°）	270
	Rotation angle-nozzle	（°）	±180
	Left-right rotation angle-nozzle	（°）	±120
	Nutation angle	（°）	8（continuous）
	Min.working height-Tunnel	m	5
Additive pump	Pump model		YD25R
	Pump type		Hose pump
	Driving way		Inverter motor drive
	Flow rate	L/h	0～1000
	Additive tank volume	L	1500
Cable reel	Specification		3×502
Cable reel	Length	m	80
Hydraulic system	Main motor power	kw	75
	Oil tank volume	L	390
	Degree of hydraulic oil pollution		NAS1638-9
	Oil pump displacement	ml/r	145
Cleaning system	Water pump model		3WZ-1814HM
	Water tank volume	L	200
	Driving way		Hydraulic
