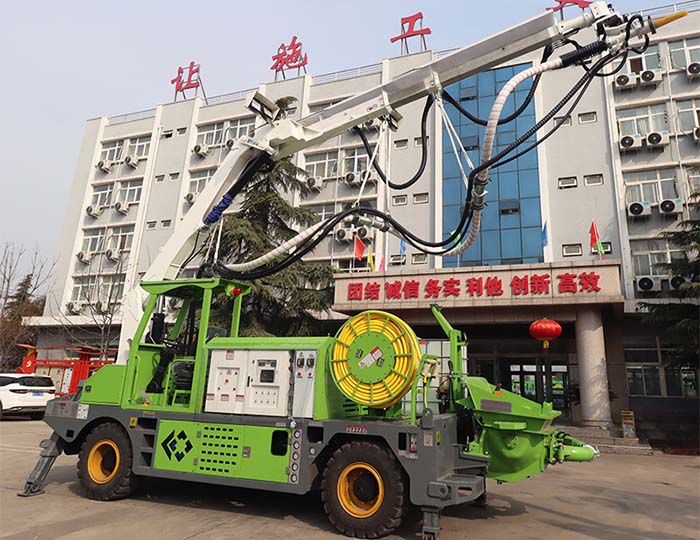

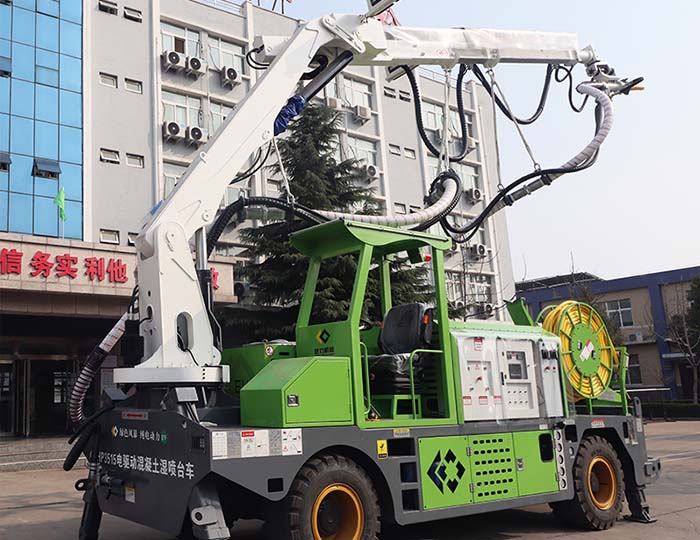

GEHP3515 Electric Driven Truck-Mounted Robot Shotcrete Machine

GEHP3515 Electric Driven Truck-Mounted Robot Shotcrete Machine

GEHP3515 is a green and environmentally friendly new energy pure electric wet shotcrete machine, the spraying capacity is no less than 35m³/h，stable performance, multiple functions, staples shift, easy to operate. The walking system is with new-energy drive system, charge the lithium battery during the working time，one charging can meet the endurance of 10 to 15 days of tunnel construction.

Parameters

Maximum theoretical spraying capacity: 35m³/h
Lithium battery capacity: 90kW
Maximum battery life: 15km
Max.aggregate size: ф15mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Robot arm

After tens of thousands of fatigue strength tests, longer service life, stable and reliable performance, wide operation ranges, hydraulic controlled, sensitive operation, more convenient maintenance.

Driving axle

Adopting enhanced wet brake steering drive axle, four-wheel drive, four-wheel steering, strong adaptability, can be driven on complex roads, stable and reliable performance.

Chassis system

97kw engine and with hydraulic transmission, electronically controlled power shift without stopping, the first three gears after the gear, more convenient to control, stable performance.

Electronic control system

Adopting a special controller for construction machinery, which is more resistant to dust and water; the failure rate is extremely low, and it can adapt to harsh environments. The panel is designed with a lower limit to prevent misoperation.

PARAMETERS

Item	Basic performance	unit	parameter
Machine data	Vehicle size (L × W × H)	mm	7820 × 2645 × 3230
	Total Weight	kg	16000
	Lithium battery capacity	kWh	90
	Maximum battery life	km	15
Pumping system	Maximum theoretical spraying capacity	m3/h	35
	Drive cylinder bore	mm	ф100
	Concrete cylinder bore	mm	ф180
	Concrete cylinder stroke	mm	1000
	Conveying pipe	mm	ф125～ф90
	Max.aggregate size	mm	ф15
	Max.pumping pressure	bar	83
	Hopper volume	m3	0.3
Chassis	Traveling way		Wheel type
	Steering		Four -wheel steering
	Driving way		Four-wheel driving
	Minimum turning radius	m	5.8
	Shift method		Automatic transmission non -levelless speed adjustment
	Wheelbase×Wheel tread	mm	3900 × 1920
	Traveling speed	km/h	0 ~ 15
	Max.climbing degree		30%
	Min.ground clearance	mm	346
Robotic arm	Max.spraying height	m	Depth 7.4 ~ Height 15.8
	Max.spraying width	m	± 13.5
	Swing angle of arm	（°）	270
	Rotation angle-nozzle	（°）	± 180
	Left-right rotation angle-nozzle	（°）	± 120
	Nutation angle	（°）	8 (continuous)
	Nozzle swing angle	（°）	8 (continuous)
	Min.working section-tunnel	m	4
Additive pump	Pump model		YD25R-CL1.5bp
	Driving way		Inverter motor drive
	Flow rate	L/h	1000
	Max.outlet pressure	bar	12
	Additive tank volume	L	1500
Hydraulic system	Main motor power	kW	55
	Hydraulic oil tank volume	L	390
	Degree of hydraulic oil pollution		NAS1638-9
	Main oil pump displacement	ml/r	145
Cleaning system	Pump model		3WZ-1814HM
	Water tank volume	L	200
	Driving way		Hydraulic drive
Electrical System	Cable specification		3 × 50 5
	Cable length	m	80
	Working condition	m	＜4500(Altitude)
