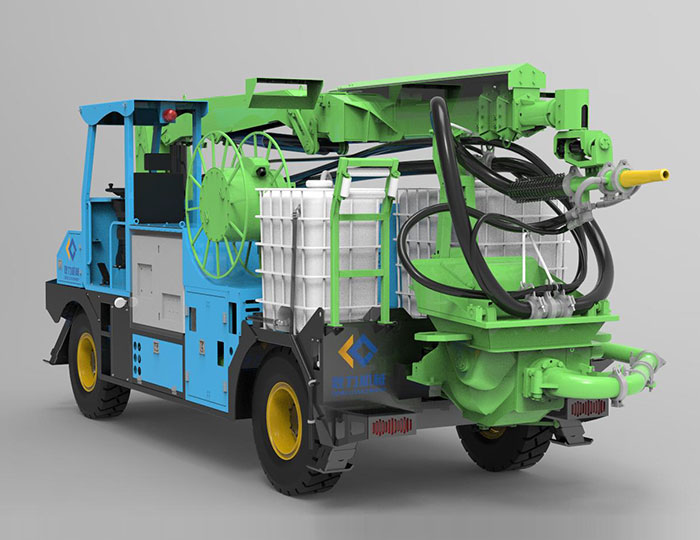

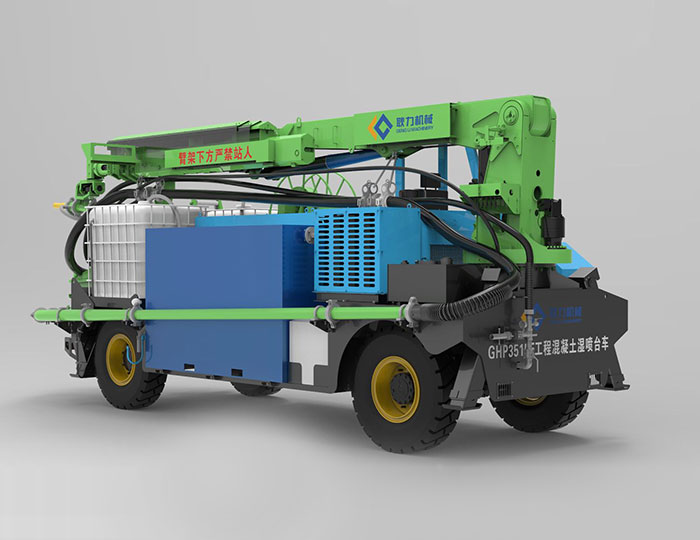

GHP3515F Engineering Truck-mounted Robot Shotcrete Machine

GHP3515F Engineering Truck-mounted Robot Shotcrete Machine

GHP3515F Concrete Spraying Machine is a new cost-effective and high-stability tunnel spraying and anchoring construction equipment newly launched by our company. It has absorbed many years of wet spraying machinery design experience in design and manufacturing, combined with famous brand products at home and abroad. The advantages of the production of a cost-effective spraying equipment, the main performance parameters have exceeded the level of similar products in the world.

Parameters

Dimensions(L×W×H): 7910×2645×3270mm
Total weight: 17000kg
Shotcrete Capacity: 35m³ /h
Conveying Pipe Diameter: Φ125～Φ90mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Robotic Arm

After tens of thousands of fatigue strength tests, the service life is longer, the performance is more stable, more reliable, the operation range is wide, the hydraulic control is adopted, the operation is sensitive, and the maintenance is more convenient.

Concrete delivery pipe

The conveying pipe adopts large-diameter pipe, which reduces the wear of concrete on the pipe, prolongs the service life of the pipe, and has strong anti-blocking ability.

Air compressor system

The whole vehicle is equipped with a high-power air compressor, which solves the disadvantages of limited equipment conditions in the past, and makes it easy to use the equipment in high-altitude areas and areas with poor equipment on the working site.

Emergency System

When the power grid is powered off, the emergency system can be activated, and the chassis engine is used as the power to perform all functions in emergency operation.

PARAMETERS

Item	Specification	Unit	Parameter
Machine Data	Size(L×W×H)	mm	7910×2645×3270
Machine Data	Weight	kg	17000
Pumping System	Shotcrete Capacity	m³/h	35
	Oil Cylinder Bore	mm	Φ100
	Piston Cylinder Bore	mm	Φ180
	Piston Cylinder Stroke	mm	1000
	Conveying Pipe Diameter	mm	Φ125～Φ90
	Max. Aggregate Size	mm	Φ15
	Concrete Outlet Pressure	bar	83
	Hopper Volume	m³	0.3
Traveling System	Traveling Method	/	Wheel
	Driving Axle	/	Front wheel steering
	Steering	/	Four Wheel Drive
	Min. Turning Radius	m	11.4
	Engine Power	kw	97
	Wheelbase	mm	4400×1887
	Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ	km/h	5/10/17.5/20
	Max. Climbing		36%（20°）
	Min. Ground Clearance	mm	300
	Braking Distance	m	5(20km/h)
Boom	Max. Spraying Height	m	Depth7.4～High15.8
	Max. Spraying Width	m	±13.5
	Swing Angle of Boom	（°）	270
	Rotary Angle around nozzle	（°）	±180
	Left-right turn angle of nozzle	（°）	±120
	Swing Angle of Nozzle	（°）	8（continuous）
	Swing Angle of Nozzle	（°）	8（continuous）
	Min. Tunnel Size	m	4
Dosing System	Doding Pump	/	YD25R
	Driving Method	/	Frequency Motor Drive
	Dosing Flow	L/h	1000
	Max. outlet pressure	bar	12
	Accelerator Tank	L	1500
Electric System	Cable Specification	/	3×95²
Electric System	Cable Length	m	80
Hydraulic System	Motor Power	kw	55
	Oil Tank Volume	L	390
	Hydraulic oil pollution degree	/	NAS1638-9
	Oil Pump Flow	ml/r	145
Washing System	Water Pump Model	/	3WZ-1814HM
	Water Tank Volume	L	200
	Drive Method	/	Hydraulic
Compressor	Compressor motor power	Kw	90
	Air Flow	m³/h	15.1
	Air pressure	bar	0.7
