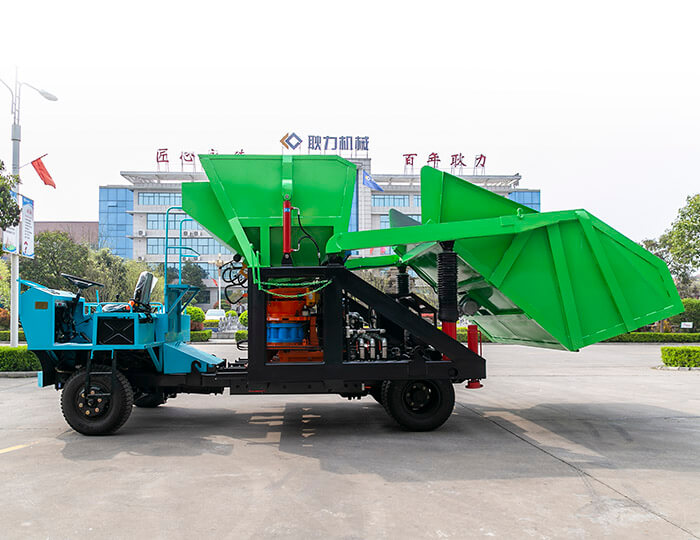

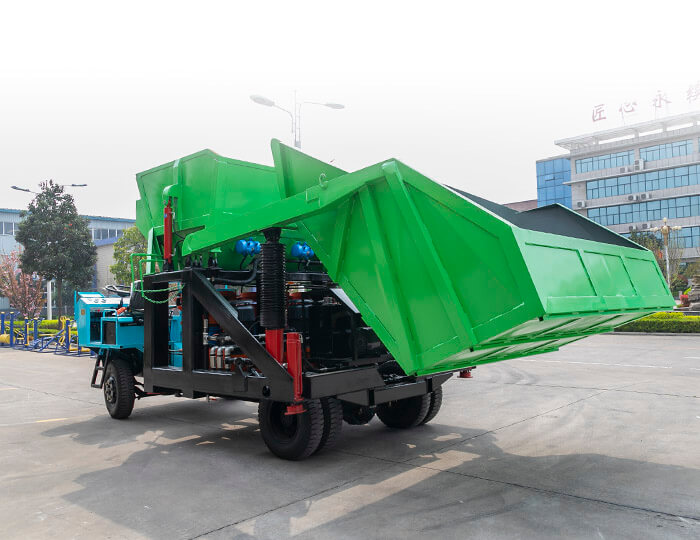

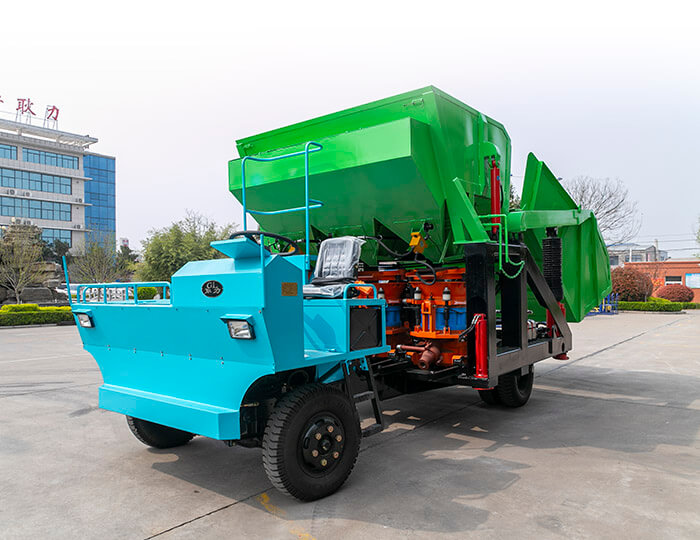

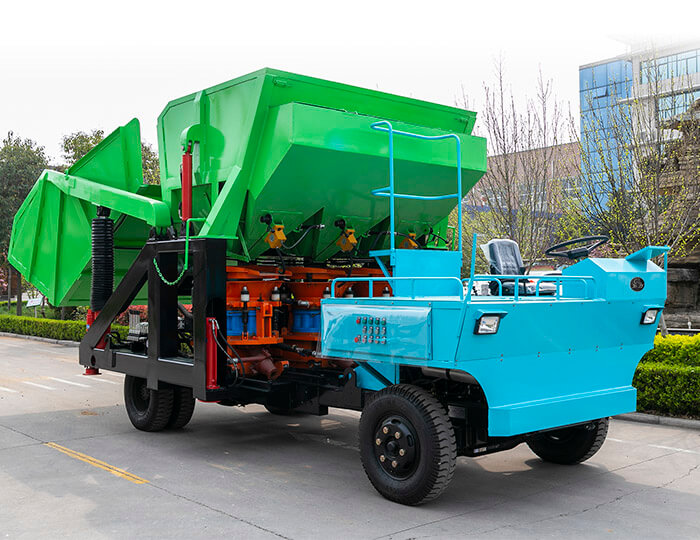

It uses a 4-cylinder 58.8KW diesel engine with strong power, and is equipped with three 7m³ shotcrete machines to work at the same time, with high work efficiency.
Production capacity ：21m³/h
System working pressure：13Mpa
System flow：46.7L/min
Hydraulic oil tank capacity：100L
Continuous feeding, high working efficiency
Feeding hopper works together with lifting hopper to ensure continuous feeding, and spraying capacity up to 21m³/h, efficiency is greatly improved.Dry shotcrete machine slide easily on the rail and work efficient
The dry-mix shotcrete machine can slide easily in the track, and the feeding hopper is lifted by hydraulic control, lowering the labor intensity of maintainers.Four hydraulic outriggers
The four hydraulic outriggers make the machine more stable, firmer and safer for construction site.The lifting hopper can automatically stop
The Oil cylinder stops working when the hopper has reached specified height, which extend service life of cylinder, reduces oil consumption and saves cost.The feeding hopper can be opened and closed easily
The feeding hopper can be opened and closed easily, the feeding amount can be automatically adjusted according to the working capacity of the dry shotcrete machine, eliminate manual adjustment.Accelerator adopts automatic device
The design of accelerator automatic adding device is new and reasonable, to realize continuous and uniform feeding, stepless speed regulation, reduce labor cost.The braking mode is air brake
The braking mode is air brake, make driving and parking easier and safer.Easy and safe feeding
A special work station is reserved for feeding accelerator, making the operation easier and safer.Easy operation
ON/OFF switches have been provided at the two sides of the machine for easier operation.| Machine parameters | Dimension | L6750*W3000*H3100mm |
| Total weight | 8400kg | |
| Engine power | 58.8KW | |
| Main motor power | 15KW | |
| Driving way | Rear wheels | |
| Traveling speed | 0-20km/h | |
| Maximum climbing degree | 30% | |
| wheelbase | 3585mm | |
| Front wheel tread | 1770mm | |
| Rear wheel tread | 1840mm | |
| Lifting height of hopper | 5640mm | |
| Rated volume of feeding hopper | 3m³ | |
| Rated volume of lifting hopper | 3m³ | |
| Rated volume of accelerator | 1000kg | |
| Hydraulic system | System working pressure | 13Mpa |
| System flow | 46.7L/min | |
| Hydraulic oil tank volume | 100L | |
| Spraying machine | Production capacity | 3×7=21m³/h |
| Maximum delivery distance（horizontal） | 200m | |
| Maximum delivery distance（vertical） | 20m | |
| Maximum aggregate diameter | 20mm | |
| Working wind pressure | 0.4~0.6 | |
| Maximum air consumption | 3×12=36m³/min | |
| Total motor power | 3×7.5=22.5KW |
