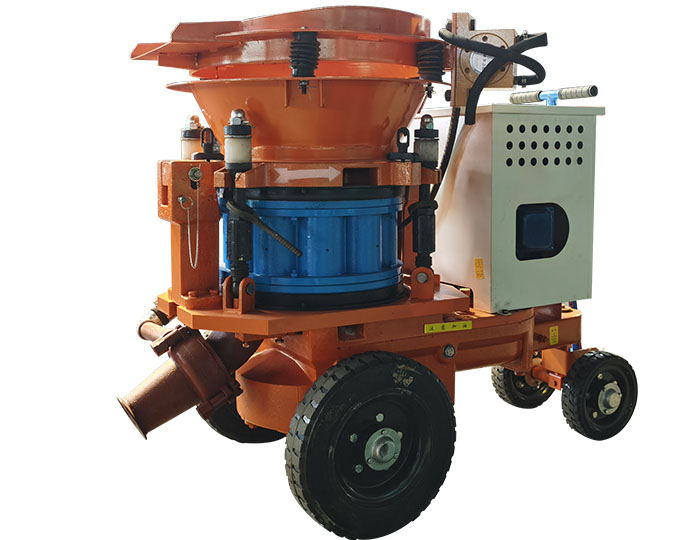

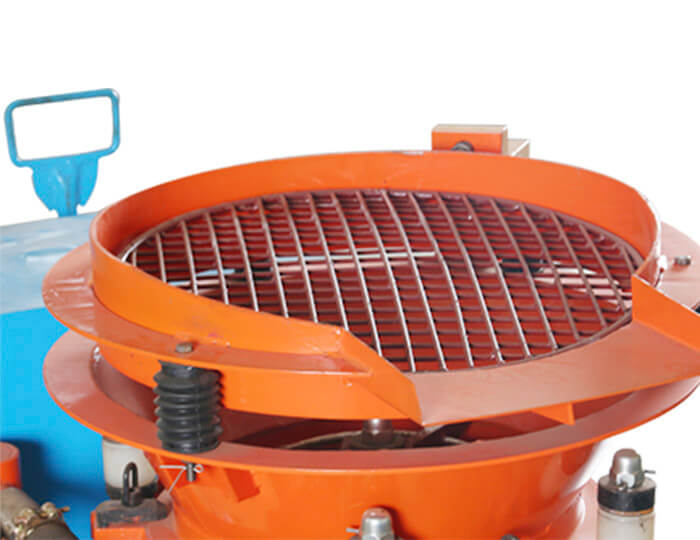

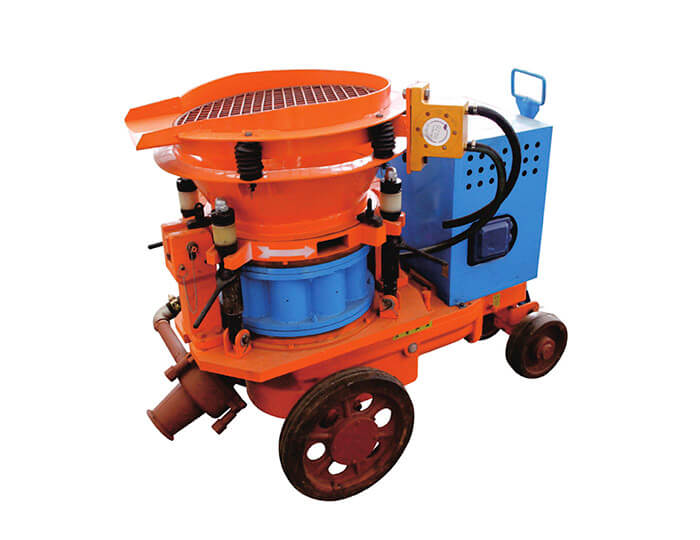

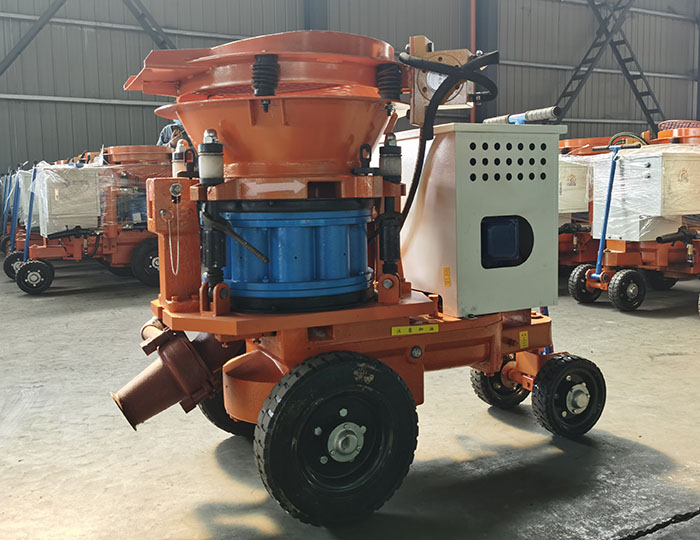

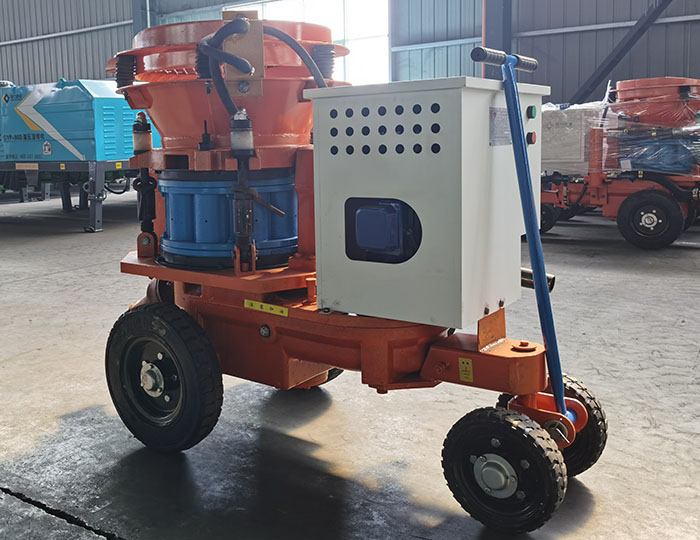

Concrete Shotcrete Machine PZ-5D is the advanced type based on PZ-5B, and it features strong vibration when discharging and fast discharging, which is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works etc.
Parameters

  • Production capacity：5m³ /h

  • Working pressure：0.4-0.6MPa

  • Inner diameter of delivery pipe：Φ51 mm

  • Theoretical delivery distance：Horizontal：200m Vertical：20m


Online Inquiry Send Email
FEATURES

Reliable performance, easy operation

Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.
PARAMETERS
Production capacity5m³/h
Working pressure0.4-0.6Mpa
Inner diameter of delivery pipeΦ51mm
Theoretical delivery distanceHorizontal 200m，Vertical 20m
maximum aggregate diameter20mm
Water cement ratio0.4-0.45
Maximum air consumption8m³/min
Motor modelY132M2-6
Feeding height1100mm
Motor power5.5KW
Voltage grade380V
Dimension1450*710*1100mm
Machine weight650kg
