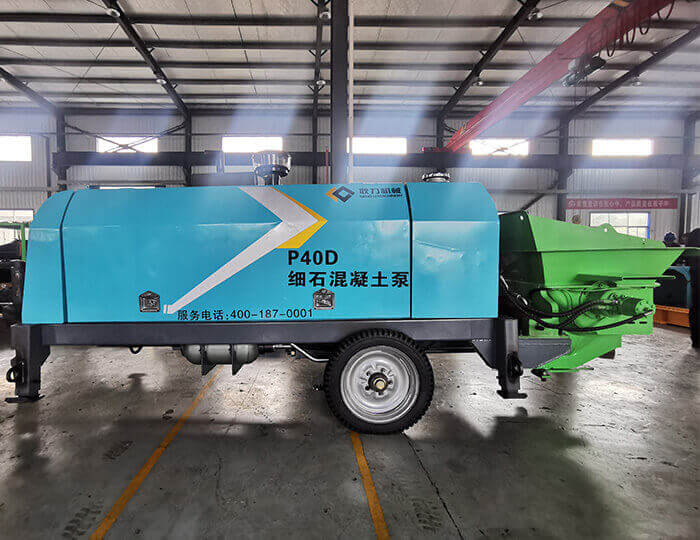

P40D Concrete conveying pump

P40D concrete conveying pump is a kind of equipment that transports dense flow materials from the pipeline to the pouring body. It can be used for the transportation of plain concrete and fiber concrete in various engineering constructions; the pressure grouting of various foundation piles; widely used in the construction of housing construction, highways, railways, hydropower stations and other projects.

Parameters

Pumping capacity ：40m³/h
Outlet pressure：10Mpa
Maximum delivery distance: Horizontal 300m/Vertical100m
Maximum aggregate diameter: 10~35mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Stable

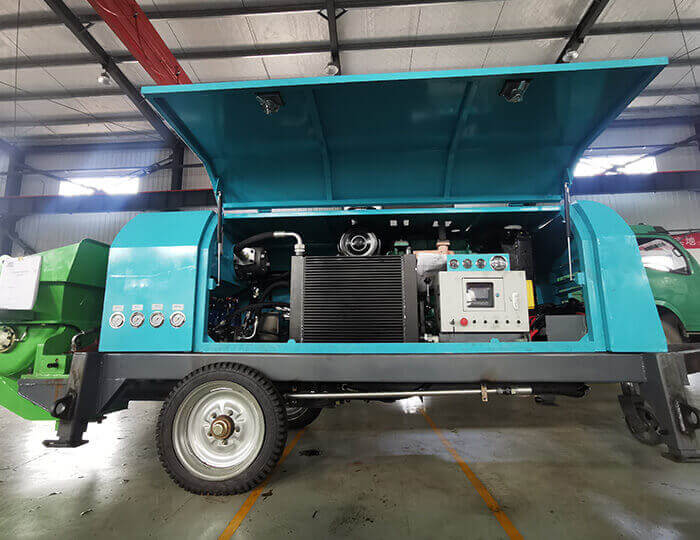

The machine is equipped with imported oil pump, with stable equipment performance and sufficient power.

High construction efficiency

The maximum concrete delivery volume is 40m³/h, and the construction concrete delivery volume can be steplessly adjusted as required.

PLC centralized control

The electrical appliances adopt PLC centralized control, which is reliable in work, long in life, and easy to program and operate.

Special machine hopper

Use mold to press the hopper, not easy to accumulate material, good material absorption.

PARAMETERS

Basic performance	Parameters
Pumping capacity	40m³/h
Outlet pressure	10Mpa
Diesel engine	62KW
Cylinder bore×stroke	160*1200mm
Hopper volume	0.4m³
Feeding height	1100mm
Maximum aggregate diameter	10~35mm
Distribution valve	S-valve
Maximum delivery distance	Horizontal 300m/Vertical100m
Concrete outlet	φ125
Main hydraulic pump displacement	112ml
Lubrication system	Auto
Slump of concrete	120-180mm
Fuel tank volume	180L
Cooling way of hydraulic oil	Air cooling
Machine weight	2350kg
Dimension	3750×1550×1700mm
