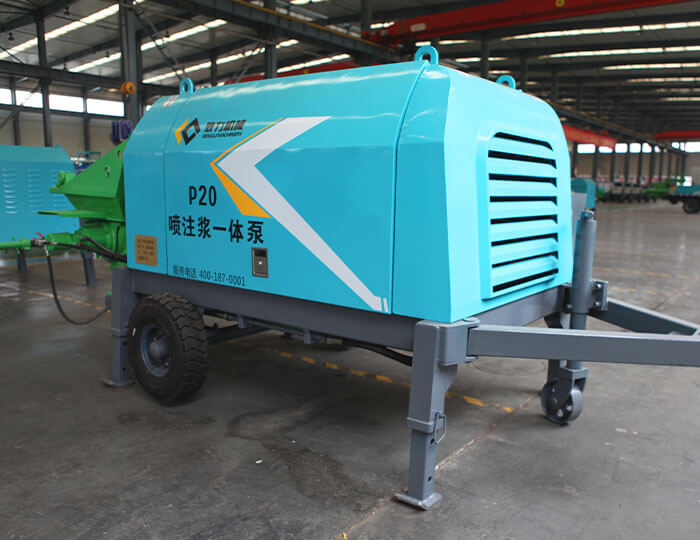

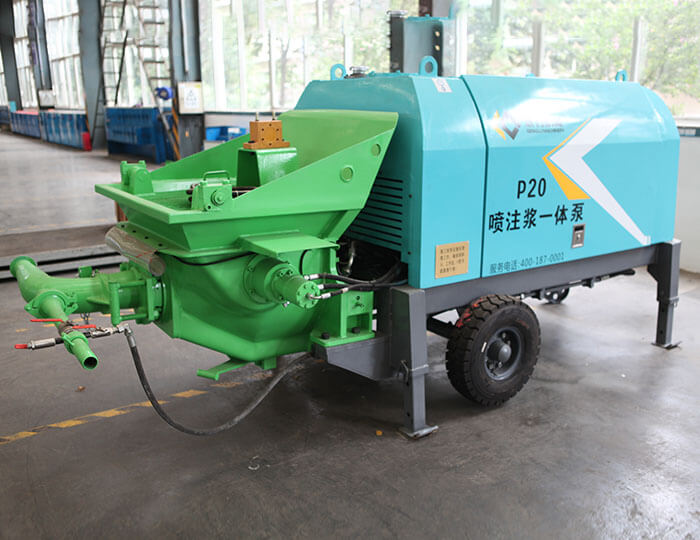

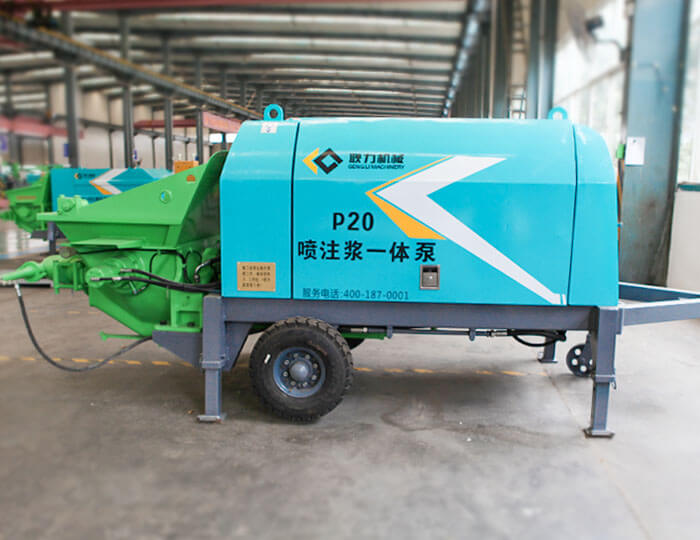

P20 Electric shotcrete pump

P20 is a kind of mechanical equipment that can be both shotcrete and grouting. The shotcrete uses the thrust generated by the hydraulic pump to make two oil cylinders alternately move back and forth to send the dense flow material from the conveying pipe to the mixed flow pipe. Grouting directly sends the dense flow material to the pouring body from the conveying pipe.

Parameters

Production capacity ：3-20m³ /h
System pressure：22MPa
Working wind pressure: 0.4-0.6Mpa
Maximum diameter of aggregate: 15mm(shotcrete)/30mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Stable

The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.

Wearable

High-manganese steel casting integrated sprinkler, smoother, more wear-resistant, shotcrete pulsation is small, and continuity is good.

PLC Control

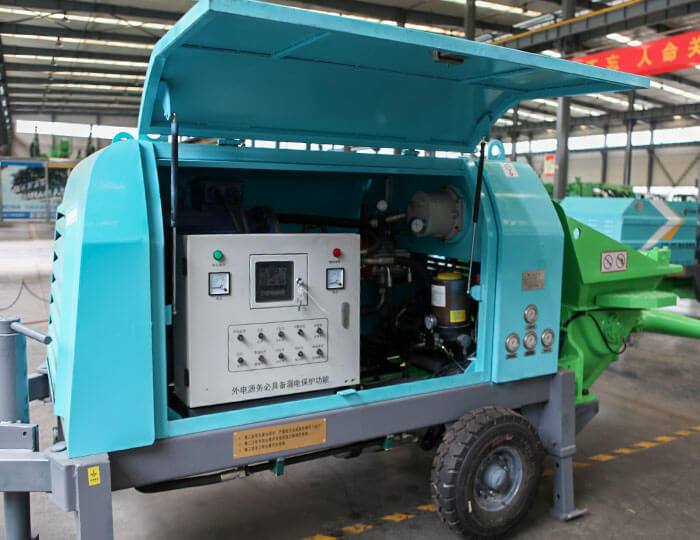

The electrical appliances adopt PLC centralized control, which is reliable in work, long in life, and easy to program and operate.

Good continuity

The shotcrete has small pulsation and good continuity. The addition amount of accelerator is steplessly adjustable.

PARAMETERS

Item	Parameters
Production capacity	3～20 m³/h
System pressure	22MPa
Cylinder bore×stroke	140mm×800mm
Working wind pressure	0.4～0.6MPa
Maximum aggregate diameter	15mm（ shotcrete）/ 30mm（grouting）
Lubrication system	Manual +auto
Fuel tank volume	142L
Dust around the machine	＜6mg/m³
Machine weight	2300 kg
Outlet pressure of concrete	7.5MPa
Main motor power	37kW
Hopper volume	0.3 m³
Feeding height	1000 mm
Distribution valve of concrete	S tube valve
Slump of concrete	120 mm～180 mm
Cooling way of hydraulic oil	Air cooling
Resilient rate	≤10%
Dimension	3250×1550×1600 mm
