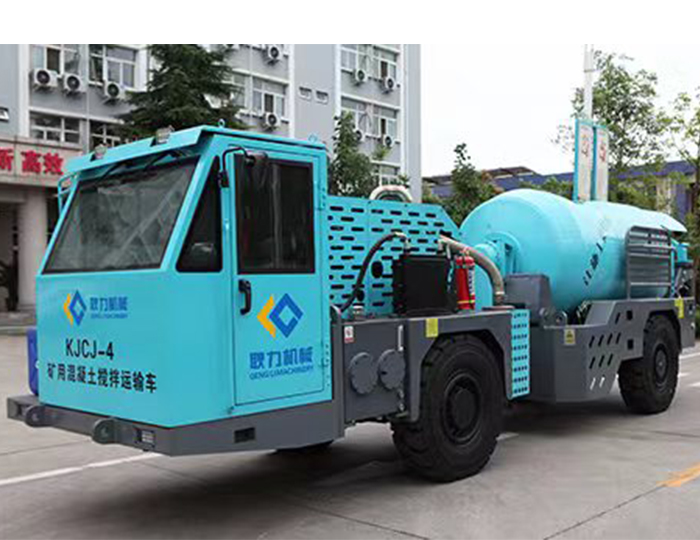

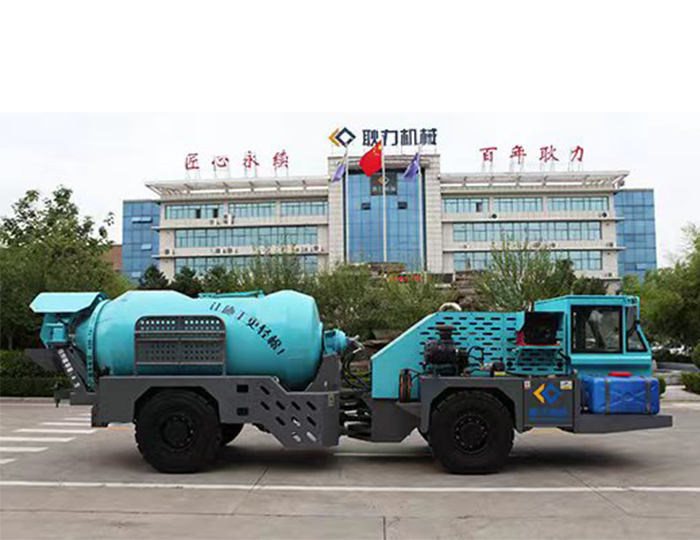

KJCJ-4 Mining Concrete Mixer Truck

KJCJ-4 Mining concrete mixer truck is a kind of concrete transportation equipment independently developed by our company in order to broaden the product structure series. The overall performance is stable, the whole machine is small in size, flexible in rotation, convenient in construction and transfer, high in transportation efficiency, and low in construction cost.

Parameters

Dimension(L×W×H): 8800×2000×2450（±50）mm
Max.traveling speed: 22km/h
Geometrical capacity: 5.5m³
Chassis: Four-wheel driving/Articulated

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

High transportation efficiency

4m³ mixing tank, high transportation efficiency.

Hydraulic system controlled

Hydraulic system controlled, simple operation and high reliability.

Heavy-duty articulated frame

Heavy-duty articulated frame, which effectively reduces the turning radius, enables flexible rotation and facilitates transition.

Well-designed

Well-designed, firm, strong impact resistance. Small size and strong maneuverability.

PARAMETERS

Item No	Basic performance	Unit	Parameters
1	Dimension(L×W×H)	mm	8800×2000×2450（±50）
2	Total weight	kg	14000
3	Articulated angle	（°）	±43
4	Turning radius	mm	4150/6200
5	Min.ground clearance	mm	320
6	Approach angle/Departure angle	（°）	15/20

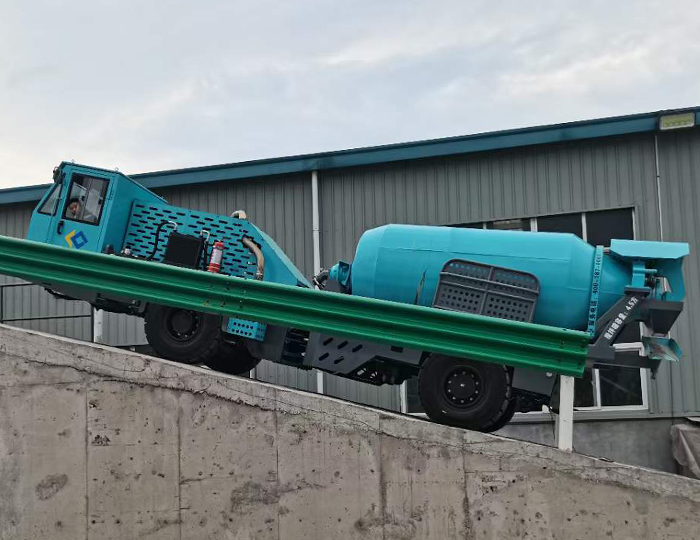

7	Max.climbing degree	（°）	15
8	Wheelbase×Wheel tread	mm	3870×1685
9	Engine power	kw	154/2200RPM
10	Diesel fuel tank	L	180
11	Chassis		Four-wheel driving/Articulated
12	Max.traveling speed	km/h	22
13	Braking distance	m	11
14	Brake		Service brake /Auauxiliary brake/Parking brake
15	Geometrical capacity	m³	5.5
16	Mixing volume	m³	0-4
17	Tank rotating speed-Travelling	r/min	1~3
18	Tank rotating speed-Unloading	r/min	0-18
19	Unloading speed	m³/min	≥0.65
20	Inclination angle	（°）	0-10.5
21	Discharging height	mm	920-1800
22	Feeding speed	m³/min	≥2.7
23	Feeding height	mm	2350
24	Feeding opening	mm	φ560
25	Hydraulic oil volume	L	170
