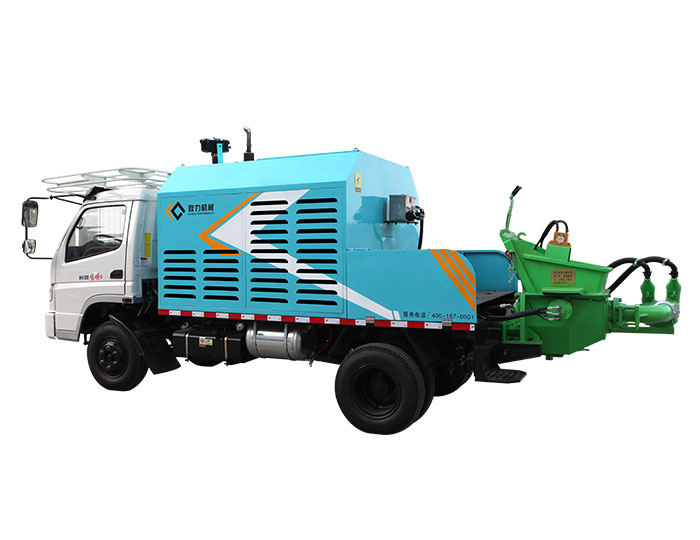

P30D Diesel shotcrete pump

P30D is a kind of mechanical equipment that can be both shotcrete and grouting. The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.

Parameters

Theoretical delivery: 40m³ /h
Outlet pressure of concrete: 9bar
Hydraulic system pressure: 260bar
Concrete maximum conveying distance: 300m horizontal / 100m vertical

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Stable

The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.

Wearable

High-manganese steel casting integrated sprinkler, smoother, more wear-resistant, shotcrete pulsation is small, and continuity is good.

PLC Control

The electrical appliances adopt PLC centralized control, which is reliable in work, long in life, and easy to program and operate.

Good continuity

The shotcrete has small pulsation and good continuity. The addition amount of accelerator is steplessly adjustable.

PARAMETERS

Model	P30D
Diesel model	Deutz Engine(V4)
Diesel Power	50KW(2200r/min)
theoretical delivery	40m³/h
Outlet pressure of concrete	9bar
hydraulic system pressure	260 bar
Concrete maximum conveying distance	300m horizontal / 100m vertical
Specification of delivery cylinder	160mm
Specification of main oil cylinder	90-55-100mm
Maximum aggregate diameter	≤25mm
Traveling System	Tow ≤80Km/h
Machine quality	3000kg
Dimension(L×W×H)	460017801720
