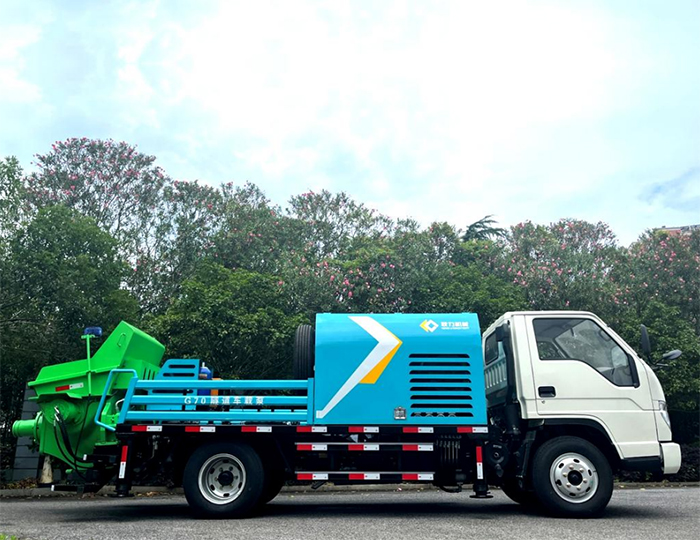

G70 Truck Mounted Concrete Pump

G70 Tunnel concrete pump truck is specially used for the pumpcrete of second lining.

Parameters

Max.concrete output: 70m³/h
Theoretical pumping distance: Vertical70/horizontal 200m
Max.pumping pressure: 7.5MPa
Motor power: 75kW

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Heavy Foton truck chassis, strong power, high adaptability

Ideal for various road conditions in the tunnel, one machine for different sections.

Wireless remote control

Equipped with wireless remote controller, makes construction easier.

High pressure hydraulic system

High pumping pressure, less blockage.

High pumping efficiency

Originally imported hydraulic oil pump,230mm large diameter concrete cylinder, max.concrete output reaches up to 70m³/h, 20% higher efficiency when compared with other brands.

PARAMETERS

Item	Parameters	Item	Parameters
Max.concrete output	70m³/h	Max.pumping pressure	7.5MPa
Theoretical pumping distance	Vertical70/horizontal 200m	Motor power	75kW
Concrete cylinder bore	230mm	Hopper volume	0.6m³
Concrete outlet	150mm	Filling height	1450mm
Max.aggregate size	40mm	Concrete distribution valve	S valve
Lubrication system	Automatic	Concrete slump	120~180mm
Chassis	Foton	Engine powr	66kw
Wheelbase	3360mm	Engine tank volume	450L
Main oil pump displacement	224ml	Total weight	7450kg
Dimension	6960×2120×2230mm
