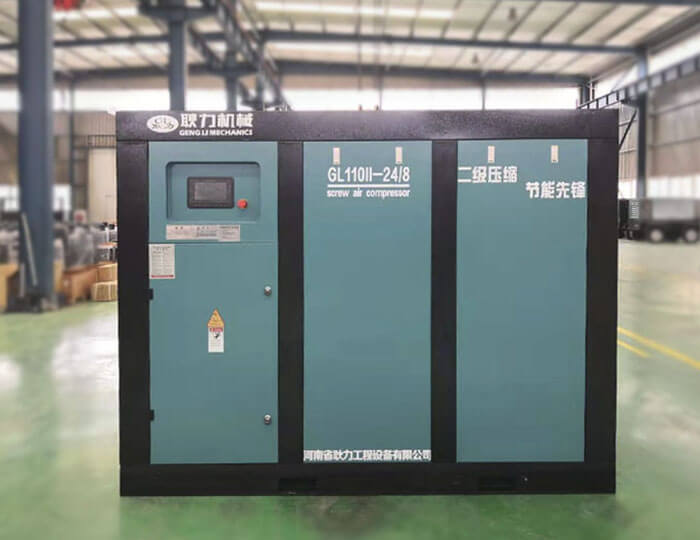

GL110A-II Electric Screw Air Compressor
Parameters
Working Pressure：0.8MPa
Motor Power：110kw
Start Type：Star triangle start
Lubrication oil volume：70L
FEATURES
The main machine adopt the design concep of large rotor low speed
The Main shaft speed is 1480rpm, low noise and low vibrationTwo-stage mainframes are more energy-efficient than single-stage mainframes.
Large starting torque, more reasonable structure, energy saving.
PARAMETERS
| Model | GL110A-II | Displacement | 24m3/min |
| Working Pressure | 0.8MPa | Motor Power | 110kw |
| Motor Speed | 1485r/min | Drive Type | Direct connect |
| Noise value in 1m | 82±3 dB(A) | Cooling Type | Air cool |
| Lubrication oil volume | 70L | Outlet gas lubricating oil carry | 1-3ppm |
| Start Type | Star triangle start | Outlet size | DN80 |
| Total Weight | 2150kg | Dimension | 2400×1600×19mm |
