Send EmailPhilippines Atimonan Project
This working site is slope protection, located in Manila, Philippines. According to the actual conditions o...
Working Pressure：0.8MPa
Motor Speed：1485r/min
Motor Power：132kw
Dimension：2100×1580×1650mm
operation condition at real time
Operator understands operation condition at real time, include operation status and failures.Reliable European-standard
Reliable European-standard Reliable European-standard key electrical control elements ensure stable operation, fine technologyOperation data like emission temperature
Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.low vibration

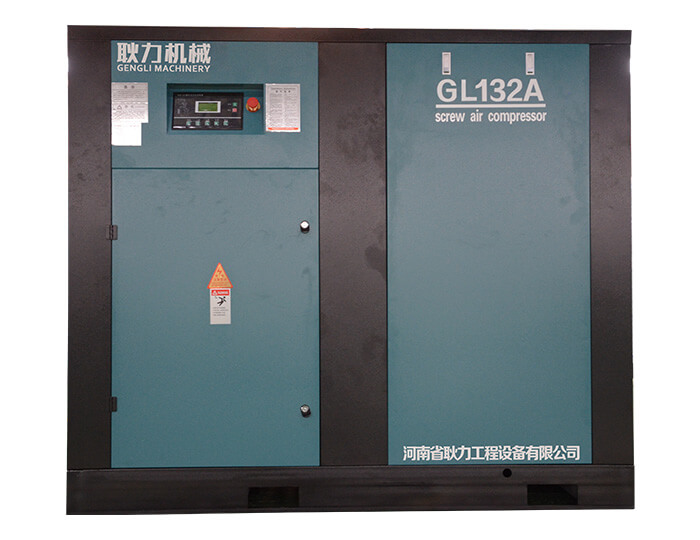

Low noise and low vibration.| Model | GL132 | Displacement | 24m3/min |
| Working Pressure | 0.8MPa | Motor Power | 132kw |
| Motor Speed | 1485r/min | Drive Type | Direct connect |
| Noise value in 1m | 82±3 dB(A) | Cooling Type | Air cool |
| Lubrication oil volume | 70L | Outlet gas lubricating oil carry | 1-3ppm |
| Start Type | Star triangle start | Outlet size | DN65 |
| Total Weight | 2350kg | Dimension | 2100×1580×1650mm |
